| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
84 pcs
|
84 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitive Load (Max) | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage (Nominal) | |
| Input Voltage Max | |
| Internal Operating Frequency (Max) | |
| Internal Operating Frequency (Min) | |
| Internal Operating Frequency (Typ) | |
| Isolation Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Accuracy | |
| Output Ripple and Noise | |
| Output Voltage - Nominal | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

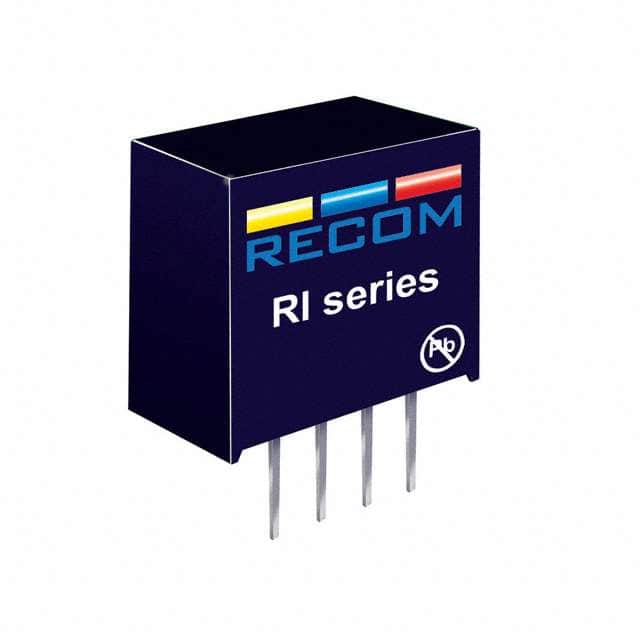

The RI-0505S/P is a 2 Watt isolated DC/DC converter in a compact 4-SIP through-hole package from the RI series by Recom Power. It accepts a nominal 5V input (range 4.5V to 5.5V) and delivers a single 5V output at up to 400mA with an efficiency of 83%.
This converter features 1000VDC basic isolation (1 second), a built-in short circuit protection (SCP) function, an output ripple and noise of 200 mVp-p, and a maximum capacitive load of 1200 µF. It operates over a wide temperature range of -40°C to +85°C with no heatsink required.
The module is housed in a 4-SIP package measuring 11.5mm x 7.6mm x 10.2mm, suitable for space-constrained industrial and commercial applications. The internal switching frequency ranges from 20 kHz to 85 kHz.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.59 | $10.59 |
| 5+ | $10.19 | $10.19 |
| 10+ | $10.03 | $10.03 |
| 25+ | $9.81 | $9.81 |
| 42+ | $9.64 | $9.64 |
| 84+ | $9.49 | $9.49 |
| 252+ | $9.28 | $9.28 |
| 504+ | $9.13 | $9.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 5.5V with a nominal input of 5V.
The output voltage is 5V nominal and the output current is 400 mA.
The isolation voltage is 1000 VDC for 1 second (basic isolation).
The operating temperature range is -40°C to +85°C.
Typical efficiency is 83%.
Yes, it features short circuit protection (SCP).
It is a through-hole 4-SIP module.
