| Category | |
| Manufacturer Name | |
| Avalanche Energy | |
| Current | |
| Current - Reverse Leakage @ Vr (Maximum @ VR = 1200 V, TC = 150 °C) | |
| Current - Reverse Leakage @ Vr (Maximum @ VR = 1200 V, TC = 25 °C) | |
| Mounting Type | |
| Nonrepetitive Peak Surge Current | |
| Operating Temperature | |
| Power Dissipation | |
| Repetitive Peak Surge Current | |
| Reverse Recovery Time (trr) | |
| Reverse Recovery Time (trr) (Maximum @ IF = 30 A, diF/dt = 100 A/µs) | |
| Reverse Voltage (Max) | |
| Speed | |
| Standard Package Quantity | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Voltage | |
| Voltage - Forward (Vf) (Max) @ If (Maximum @ IF = 30 A, TC = 150 °C) |

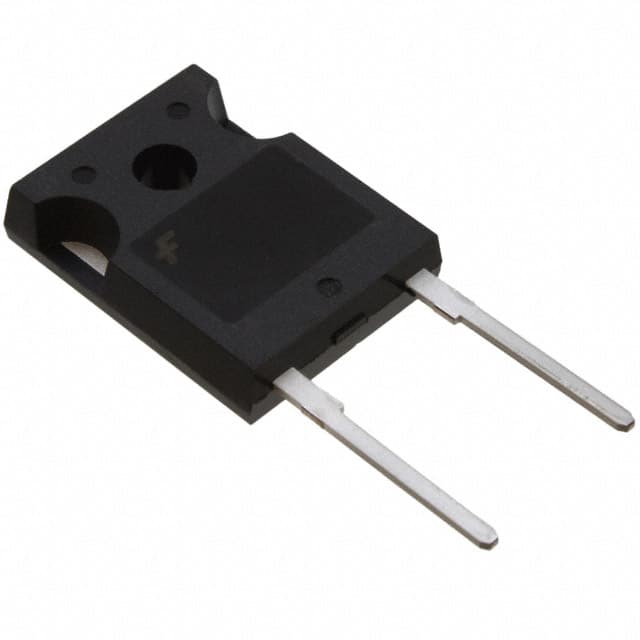

The RHRG30120 is a hyperfast power rectifier diode manufactured by onsemi (formerly ON Semiconductor). It is rated for a maximum reverse voltage of 1200V and an average rectified forward current of 30A at a case temperature of 80°C. The diode employs an epitaxial planar construction with silicon nitride passivation, delivering hyperfast switching with reverse recovery times as low as 65ns at 1A, and 85ns at 30A with a diF/dt of 100A/µs.
This device is designed for power switching applications including switching power supplies and power switching circuits. Its soft recovery characteristic minimizes ringing and electrical noise, reducing power loss in switching transistors. The diode also features avalanche energy rating of 30mJ and can withstand nonrepetitive peak surge currents up to 300A.
Packaged in a through-hole TO-247-2 (2-lead) package, the RHRG30120 has an operating temperature range of -65°C to 175°C and a maximum power dissipation of 125W at 25°C. The device is Pb-Free and RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 450+ | $2.51 | $2.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum DC reverse voltage is 1200V.
The average rectified forward current is 30A at a case temperature of 80°C.
At 30A and 25°C case temperature, the maximum forward voltage is 3.2V. At 150°C, it drops to 2.6V.
The reverse recovery time is 85ns maximum at 30A with diF/dt = 100A/µs, and 65ns at 1A with the same slew rate.
It is supplied in a through-hole TO-247-2 (2-lead) package.
The operating junction and storage temperature range is -65°C to 175°C.
