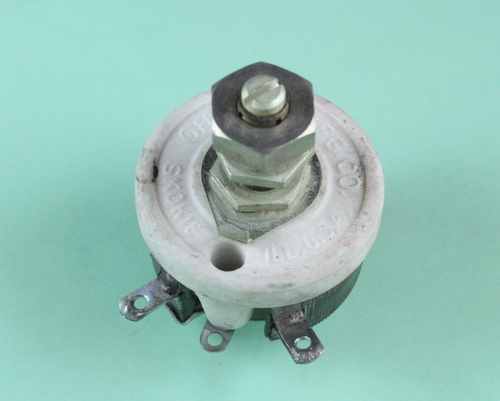

RHL125 The Ohmite RHL125 is a 25W wirewound rheostat potentiometer with 125 Ohm resistance and a linear taper. It features solder lug terminals for easy connection.
Mfr Part #:

RHL125

Available from 1 distributors
Mfr Name: Ohmite
Ohmite
The Ohmite RHL125 is a 25W wirewound rheostat potentiometer with 125 Ohm resistance and a linear taper. It features solder lug terminals for easy connection.
✓ Total Stock: 9 pcs
$ Price Range: $0.05

RHL125 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RHL125 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Diameter
Actuator Length
Actuator Type
Adjustment Type
Built in Switch
Bushing Thread
Lead Style
Mounting Type
Number of Gangs
Number of Turns
Power (Watts)
Power Rating
Resistance
Resistance (Ohms)
Resistive Material
Rotation
Storage Temperature
Tape & Reel
Taper
Termination Style
Tolerance
View Similar Products (0)

RHL125 Description

Short technical summary and product information.

This Ohmite RHL125 is a wirewound rheostat potentiometer designed for applications requiring precise resistance control. It offers a resistance value of 125 Ohms with a power rating of 25 watts and a tolerance of ±10%.



The potentiometer features a linear taper, ensuring a consistent change in resistance relative to the rotation. It is constructed with a wirewound resistive material, suitable for higher power applications. The termination style is solder lugs, facilitating straightforward integration into circuits.



With a single turn and a 300° rotation range, the RHL125 provides ample adjustment capability. The actuator is slotted and has a diameter of 0.250 inches, with a length of 0.750 inches. The bushing thread is 3/8-32, and it is designed for panel mount applications.



This component is specified with RoHS3 compliance and an MSL 1 rating, indicating unlimited shelf life under standard conditions. It is also noted as REACH Unaffected.

RHL125 Quick Information

Product Type: Rheostat Potentiometer
Canonical Name: Ohmite RHL125 Wirewound Rheostat Potentiometer
Subcategory: Rheostat

RHL125 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RHL125 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

RHL125 Features

  • 125 Ohm resistance, 25W power rating.
  • ±10% tolerance with linear taper.
  • Wirewound resistive material construction.
  • Solder lug terminals for easy connection.
  • Panel mount design with slotted actuator.

RHL125 Applications

  • Ideal for adjustable power control circuits.
  • Suitable for variable resistance applications.
  • Used in test and measurement equipment.
  • Component for industrial control systems.

RHL125 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance of the Ohmite RHL125 potentiometer?

The resistance of the Ohmite RHL125 potentiometer is 125 Ohms.

What is the power rating of the RHL125 rheostat?

The RHL125 rheostat has a power rating of 25W.

What is the tolerance for the Ohmite RHL125 potentiometer?

The tolerance for the Ohmite RHL125 potentiometer is ±10%.

What type of taper does the RHL125 potentiometer have?

The RHL125 potentiometer has a linear taper.

How many turns does the Ohmite RHL125 have?

The Ohmite RHL125 has 1 turn.

What is the termination style for the RHL125?

The termination style for the RHL125 is solder lug.

What is the mounting type for this potentiometer?

This potentiometer is designed for panel mount.
