| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | 4 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Halogen Free | |
| Lead Style | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Storage Temperature | |
| Switching Voltage | |
| Tape & Reel | |
| Termination Style |

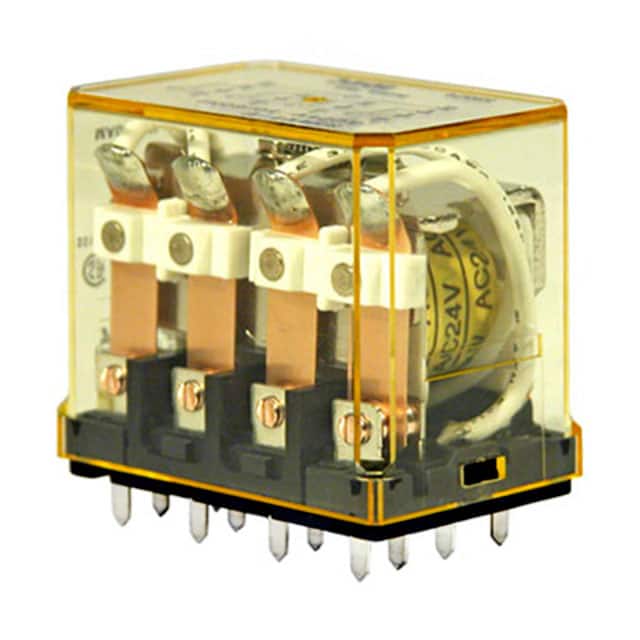

This Idec RH4V2-UDC24V is a General Purpose Relay designed for various applications. It features a 4PDT (4 Form C) contact configuration, allowing for multiple switching functions.
The relay has a contact rating of 10A and utilizes Silver Cadmium Oxide (AgCdO) for its contact material, known for its good conductivity and arc suppression properties. The coil operates at 24VDC with a coil current of 62 mA. It requires a must-operate voltage of 19.2 VDC and has a must-release voltage of 2.4 VDC.
Designed for through-hole mounting with PC pin termination, this relay operates within a temperature range of -25°C to 70°C. Its operate and release times are both 25 ms. The switching voltage is rated up to 120VAC and 28VDC maximum.
The coil voltage is 24VDC.
The contact form is 4PDT (4 Form C).
The contact rating is 10A.
The operating temperature is -25°C to 70°C.
It is a General Purpose relay.
The coil current is 0.062A (62 mA).
The contact material is Silver Cadmium Oxide.
