RH221C106MA3RA3 Kyocera AVX RH221C106MA3RA3 is a 10 µF, ±20%, 100V, X7R MLCC in a stacked SMD J-Lead package.
Mfr Part #:

RH221C106MA3RA3

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
Kyocera AVX RH221C106MA3RA3 is a 10 µF, ±20%, 100V, X7R MLCC in a stacked SMD J-Lead package.
✓ Total Stock: 26 pcs
$ Price Range: $12.26 - $18.86

RH221C106MA3RA3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
26 pcs
On Request
26 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RH221C106MA3RA3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Dielectric Withstanding Voltage
Dissipation Factor
Features
Industrial Grade
Insulation Resistance
Lead Spacing
Lead Style
Length
Military Grade
Mounting Type
Operating Temperature
Tape & Reel
Temperature Coefficient
Thickness (Max)
Tolerance
Voltage
Width
View Similar Products (0)

RH221C106MA3RA3 Description

Short technical summary and product information.

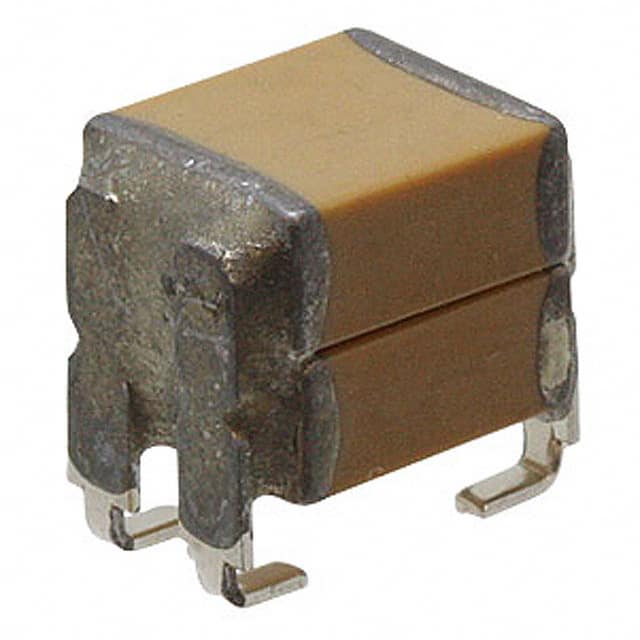

The Kyocera AVX RH221C106MA3RA3 is a 10 µF, ±20% tolerance, 100V rated multilayer ceramic capacitor (MLCC) with X7R temperature coefficient. It is housed in a stacked SMD package with a J-Lead lead style, measuring 7.62 mm x 5.40 mm with a maximum thickness of 7.50 mm.



The RH series is designed for high volumetric efficiency, using double stacked MLCCs to save PCB space while reducing the thermo-mechanical stresses that can affect large ceramic capacitors. The J-Lead frame enhances resistance to temperature variation, thermal shock, vibration, and PCB bending.



This capacitor is suitable for input or output filtering in high-frequency DC-DC converters, telecom, industrial, automotive, and military applications. Typical ESR values for the series are 17 mΩ at 100 kHz, 12 mΩ at 500 kHz, and 14 mΩ at 1 MHz.

RH221C106MA3RA3 Quick Information

Product Type: MLCC Capacitor
Series: RH
Canonical Name: Kyocera AVX RH221C106MA3RA3, 10 µF ±20%, 100V, X7R, J-Lead MLCC Capacitor
Subcategory: Stacked SMD MLCC

RH221C106MA3RA3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RH221C106MA3RA3 Estimated Pricing

Qty Low High
1+ $18.86 $18.86
10+ $14.90 $14.90
50+ $13.32 $13.32
100+ $12.27 $12.27
540+ $12.26 $12.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

RH221C106MA3RA3 Features

  • 10 µF capacitance with ±20% tolerance.
  • Rated for 100V DC operation.
  • X7R temperature coefficient with -55 to +125°C range.
  • Low ESR/ESL J-Lead stacked SMD package.
  • Enhanced thermo-mechanical stress resistance.

RH221C106MA3RA3 Applications

  • Input/output filtering in high-frequency DC-DC converters.
  • Power supply decoupling in telecom and industrial equipment.
  • Automotive electronic control modules.
  • Military and aerospace power systems.
  • Space-constrained applications requiring high volumetric efficiency.

RH221C106MA3RA3 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the capacitance and tolerance of the RH221C106MA3RA3?

The capacitance is 10 µF with ±20% tolerance.

What is the voltage rating of this capacitor?

The rated voltage is 100V.

What is the operating temperature range and temperature coefficient?

The temperature coefficient is X7R (±15% change over temperature), and the operating temperature range is -55°C to +125°C.

What is the package type and mounting?

The package is a Stacked SMD with 4 J-Leads, designed for surface mount (MLCC) mounting.

What is the maximum dissipation factor?

The dissipation factor is 2.5% maximum, measured at 1 kHz, 1 VRMS at 25°C.
