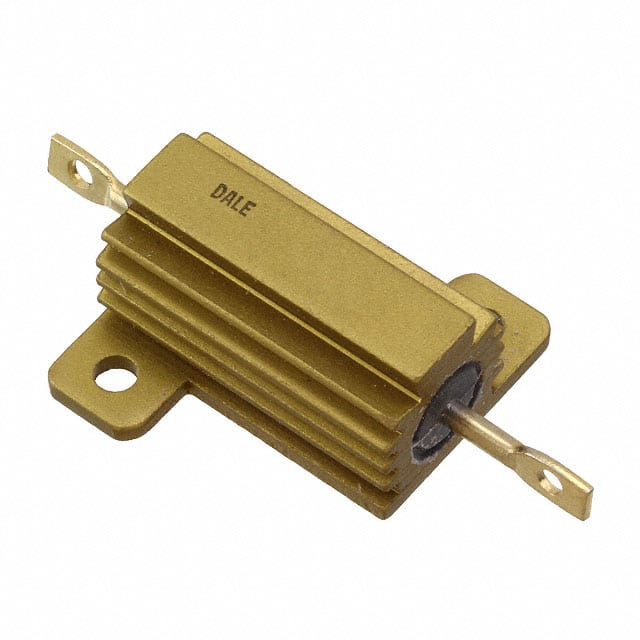

RH02530R00FE02 This Vishay Dale RH02530R00FE02 is a 25W wirewound chassis mount resistor with 30 Ohms resistance and a 1% tolerance. It features solder lug leads for easy mounting.
Mfr Part #:

RH02530R00FE02

Available from 1 distributors
Mfr Name: Vishay
Vishay
This Vishay Dale RH02530R00FE02 is a 25W wirewound chassis mount resistor with 30 Ohms resistance and a 1% tolerance. It features solder lug leads for easy mounting.
✓ Total Stock: 147 pcs
$ Price Range: $0.05

RH02530R00FE02 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
147 pcs
On Request
147 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RH02530R00FE02 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coating, Housing Type
Composition
Features
Height
Lead Style
Length
Mounting Feature
Mounting Type
Operating Temperature
Operating Temperature Range
Power (Watts)
Power Rating
Resistance
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RH02530R00FE02 Description

Short technical summary and product information.

The Vishay Dale RH02530R00FE02 is a high-power wirewound resistor designed for chassis mounting. It offers a resistance value of 30 Ohms with a tight tolerance of ±1% and a power rating of 25W at 25°C.



This resistor features a molded construction for environmental protection and complete welded construction. It is designed to mount directly onto a chassis, utilizing the heat-sink effect for efficient thermal management. The operating temperature range is -55°C to 250°C, ensuring reliable performance in demanding applications.



Key specifications include a ±20ppm/°C temperature coefficient and solder lug lead style. The housing is made of aluminum, contributing to its durability and heat dissipation capabilities. This component meets applicable requirements of MIL-PRF-18546.



Ideal for industrial power applications, the RH02530R00FE02 provides excellent stability in operation with less than 1% change in resistance. Its robust construction and performance characteristics make it suitable for various power control and filtering circuits.

RH02530R00FE02 Quick Information

Product Type: Chassis Mount Resistor
Canonical Name: Vishay Dale RH02530R00FE02 Wirewound Chassis Mount Resistor
Subcategory: Chassis Mount

RH02530R00FE02 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RH02530R00FE02 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

RH02530R00FE02 Features

  • 25W power rating for industrial applications.
  • 30 Ohm resistance with 1% tolerance.
  • Wirewound composition for high power.
  • Chassis mount design for heat dissipation.
  • Operates from -55°C to 250°C.

RH02530R00FE02 Applications

  • Suitable for industrial power circuits.
  • Used in power supply filtering.
  • Applicable in motor control systems.
  • Ideal for heat-generating applications.

RH02530R00FE02 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RH02530R00FE02 resistor?

The resistance value is 30 Ohms.

What is the power rating of the RH02530R00FE02 resistor?

The power rating is 25W.

What is the tolerance of the RH02530R00FE02 resistor?

The tolerance is ±1%.

What is the temperature coefficient for this resistor?

The temperature coefficient is ±20ppm/°C.

What is the operating temperature range for the RH02530R00FE02?

The operating temperature range is -55°C to 250°C.

How is the RH02530R00FE02 resistor mounted?

It is designed for chassis mounting using flanges.

What type of leads does the RH02530R00FE02 resistor have?

It has solder lug leads.
