| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
106,500 pcs
|
106500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Capacitance @ Vr, F | |
| Current | |
| Maximum Repetitive Peak Reverse Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Surge Current | |
| Reverse Recovery Time (trr) | |
| SVHC Present | |
| Speed | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Finish | |
| Voltage |

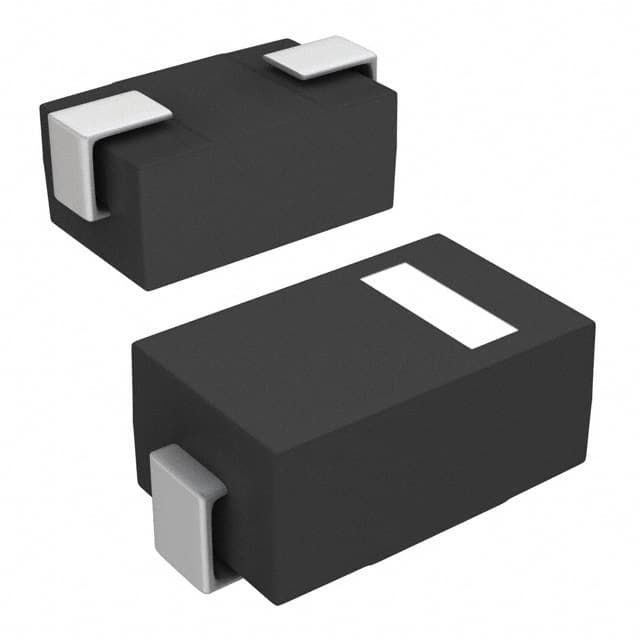

The RGF1D-E3/67A from Vishay General Semiconductor is a surface-mount fast switching rectifier diode. It features a glass passivated junction and Superectifier structure for high reliability. The device is rated for a maximum repetitive peak reverse voltage of 200 V and an average forward current of 1 A. Its fast reverse recovery time of 150 ns enables high-efficiency switching in power conversion circuits.
Key electrical characteristics include a forward voltage drop of 1.3 V maximum at 1 A, a junction capacitance of 8.5 pF typical at 4 V and 1 MHz, and a peak forward surge current capability of 30 A (8.3 ms half sine-wave). The operating junction temperature range is -65°C to 175°C. The diode is housed in a DO-214BA (GF1) surface-mount package with matte tin plated leads.
Typical applications include fast switching rectification in power supplies, inverters, converters, and freewheeling diodes for consumer, automotive, and telecommunication equipment. The device meets MSL Level 1 per J-STD-020 and is RoHS3 compliant. Note: The manufacturer has marked this part as not recommended for new designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.69 | $1.69 |
| 10+ | $1.07 | $1.07 |
| 100+ | $0.70 | $0.70 |
| 500+ | $0.56 | $0.56 |
| 1,000+ | $0.44 | $0.44 |
| 1,500+ | $0.44 | $0.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
200 V.
1 A.
1.3 V maximum at 1 A.
150 ns maximum.
Surface mount DO-214BA (GF1).
-65°C to 175°C.
8.5 pF typical at 4V, 1MHz.
