| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Serial Interfaces | |
| Voltage | |
| Voltage Supply |

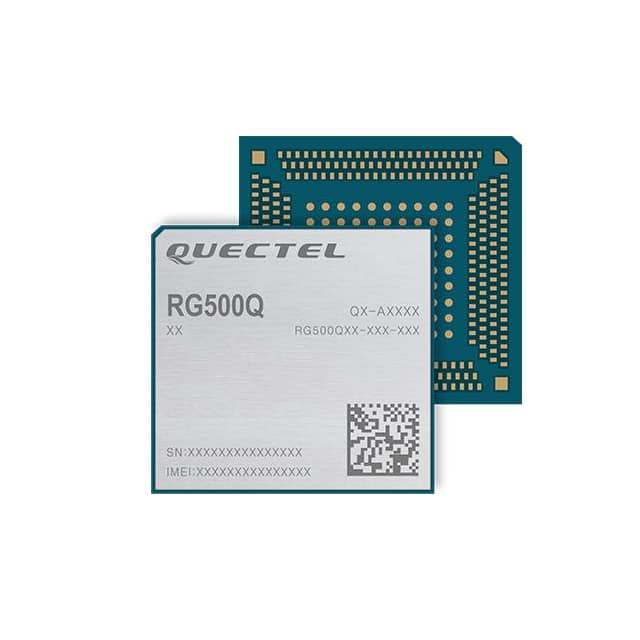

The Quectel RG500QEAAA-M20-SGASA is a surface-mount RF Transceiver Module designed for cellular and navigation applications. It supports a wide range of protocols including BeiDou, Galileo, GLONASS, GPS, GNSS, LTE, and WCDMA.
Key electrical specifications include an output power of 26dBm, a data rate of 2.5Gbps, and an operating frequency of 6GHz. The module operates within a supply voltage range of 3.3V to 4.3V and consumes 16mA during both receiving and transmitting.
This module features multiple serial interfaces such as ADC, GPIO, I2C, I2S, PCM, SDIO, UART, SPI, and USB, providing versatile connectivity options. It is designed for surface mounting and comes in a module package. The operating temperature range is -30°C to 75°C.
The RG500QEAAA-M20-SGASA is specified as RoHS3 Compliant with a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 3.3V to 4.3V.
The package type is Module, and it is designed for surface mounting.
The operating temperature range is -30°C to 75°C.
Yes, it is RoHS3 Compliant.
