| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,089 pcs
|
3089 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,089 pcs
|
3089 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

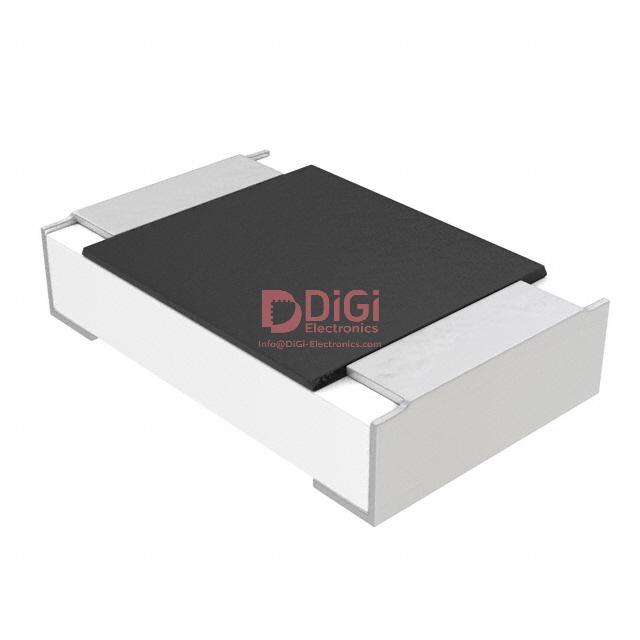

This Susumu RG2012P-4321-B-T5 is a high-precision thin film chip resistor designed for surface mount applications. It offers a resistance value of 4.32 kOhms with a tight tolerance of ±0.1%, making it suitable for applications requiring accurate resistance values.
The resistor has a power rating of 0.125W (1/8W) and operates across a wide temperature range of -55°C to 155°C. Its thin film construction provides benefits such as low noise and anti-sulfur properties. The component is compliant with AEC-Q200 standards, indicating its suitability for automotive electronics.
Packaged in an 0805 (2012 Metric) case, this surface mount resistor measures 2.00mm in length and 1.25mm in width, with a height of 0.50mm. It is supplied on tape and reel for automated assembly processes. The operating temperature range is -55°C to 155°C, and it features a temperature coefficient of ±25ppm/°C.
Key electrical specifications include a resistance of 4.32 kOhms, a tolerance of ±0.1%, and a power rating of 1/8W. The component's features include anti-sulfur properties and AEC-Q200 compliance, making it a reliable choice for demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 4.32 kOhms.
The tolerance is ±0.1%.
The power rating is 0.125W, or 1/8W.
The temperature coefficient is ±25ppm/°C.
The operating temperature range is -55°C to 155°C.
It is an 0805 (2012 Metric) package.
Yes, it features AEC-Q200 compliance.
