| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

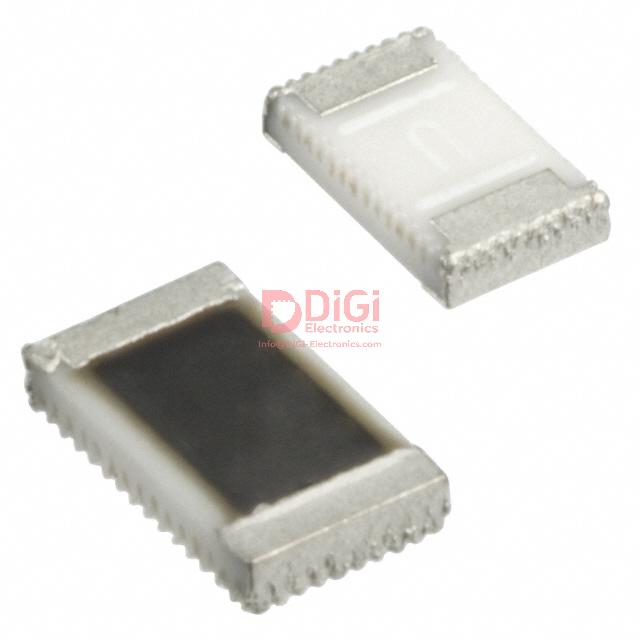

This Susumu RG2012P-392-B-T5 is a surface mount chip resistor from the RG series, designed for high-precision applications. It features a resistance of 3.9 kΩ with a tight tolerance of ±0.1% and a power rating of 0.1W (1/8W).
The resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±25ppm/°C. Its thin film composition ensures low noise and anti-sulfur properties, making it suitable for demanding environments.
Packaged in an 0805 (2012 Metric) case, this component has dimensions of 2.00mm x 1.25mm and a height of 0.50mm. It is AEC-Q200 compliant, indicating its suitability for automotive electronics and other critical applications.
Key specifications include a 2-termination configuration and a standard package quantity of 5,000 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 3.9 kΩ.
The tolerance is ±0.1%.
The power rating is 0.1W (1/8W).
The temperature coefficient is ±25ppm/°C.
The operating temperature range is -55°C to 155°C.
It is in an 0805 (2012 Metric) package.
Yes, the RG2012P-392-B-T5 is AEC-Q200 compliant.
