| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,466 pcs
|
5466 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
140 pcs
|
140 pcs | On Request | 1 | 1 | On Request | On Request | On Request | On Request | |
|
133 pcs
|
133 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
105 pcs
|
105 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC-Q200 Compliant | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

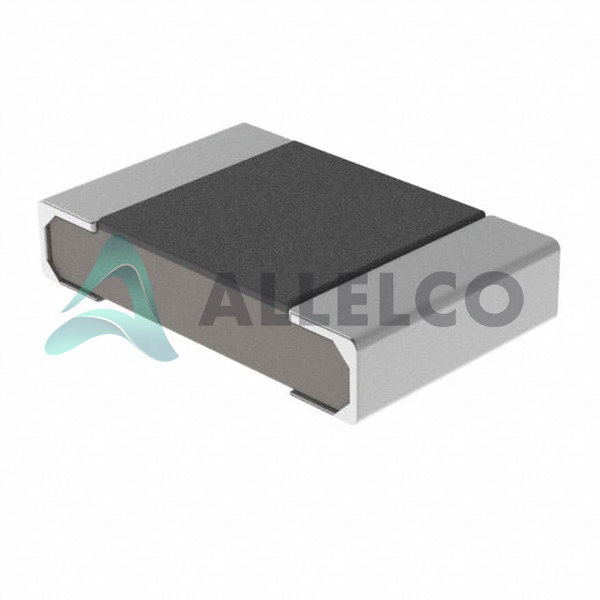

This Susumu RG2012P-102-B-T5 is a high-precision thin film chip resistor from the RG series. It offers a resistance value of 1 kΩ with a tight tolerance of ±0.1% and a power rating of 0.125W (1/8W).
The resistor operates within a temperature range of -55°C to 155°C and features a temperature coefficient of ±25ppm/°C. Its thin film structure provides low noise and anti-sulfur properties, making it suitable for demanding applications.
Designed for surface mounting, this component comes in an 0805 package (2.00mm x 1.25mm). It is AEC-Q200 compliant, indicating its suitability for automotive electronics and other high-reliability environments. The series also boasts long-term stability with less than ±0.1% drift after 10,000 hours of testing.
Key features include its high precision, small TCR, and robust construction for reliability in industrial measurement instrumentation, various sensors, and medical electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1 kΩ.
The tolerance is ±0.1%.
The power rating is 0.125W or 1/8W.
The temperature coefficient is ±25ppm/°C.
The operating temperature range is -55°C to 155°C.
It is in an 0805 package, measuring 2.00mm x 1.25mm.
Yes, the RG2012P-102-B-T5 is AEC-Q200 compliant.
