| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,426 pcs
|
1426 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
228 pcs
|
228 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
34 pcs
|
34 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

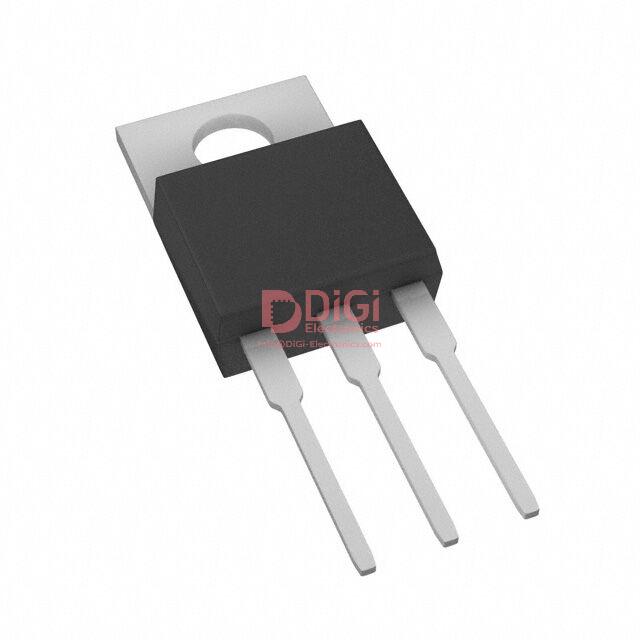

The RFP50N06 from On Semiconductor is an N-Channel power MOSFET manufactured using the MegaFET process. It offers a drain-to-source voltage of 60V and a continuous drain current of 50A at 25°C.
This MOSFET features a low on-resistance of 22mOhm at 50A and 10V gate-source voltage, making it suitable for applications requiring efficient power switching. The operating temperature range is -55°C to 175°C (TJ), and it has a maximum power dissipation of 131W (Tc).
The device is designed for through-hole mounting and comes in a TO-220-3 package. Its specifications make it suitable for use in switching regulators, converters, motor drivers, and relay drivers.
Key electrical characteristics include a gate-to-source voltage of ±20V maximum and a gate-to-source threshold voltage of 4V maximum at 250µA. Input capacitance is rated at 2020pF maximum at 25V, and gate charge is 150nC maximum at 20V.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.27 | $2.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-to-source voltage for the RFP50N06 is 60V.
The RFP50N06 has a maximum continuous drain current of 50A at 25°C.
The on-resistance of the RFP50N06 is a maximum of 22mOhm at 50A and 10V gate-source voltage.
The operating temperature range for the RFP50N06 is -55°C to 175°C (TJ).
The RFP50N06 is available in a TO-220-3 package for through-hole mounting.
