| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
243 pcs
|
243 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |
The RFNL15TJ6SGC9 is a standard recovery rectifier diode from ROHM Semiconductor, designed for general-purpose power rectification. It is rated for a maximum repetitive reverse voltage of 600V and an average forward current of 15A. The diode exhibits a forward voltage of 1.3V at 15A and a reverse recovery time of 160ns, classifying it as a fast recovery device (≤500ns, >200mA).

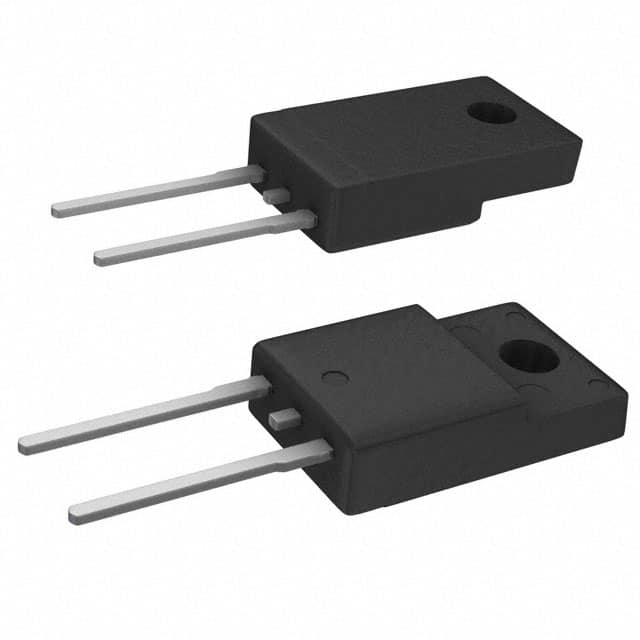

This through-hole component is housed in a TO-220-2 Full Pack package, also designated as TO-220ACFP, which provides robust thermal performance and ease of mounting on heatsinks. The maximum operating junction temperature is 150°C.
Typical applications include power supply rectification, freewheeling diodes, and snubber circuits in industrial and consumer electronics. The device is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.64 | $2.64 |
| 10+ | $1.30 | $1.30 |
| 100+ | $1.17 | $1.17 |
| 500+ | $1.00 | $1.00 |
| 1,000+ | $0.86 | $0.86 |
| 2,000+ | $0.80 | $0.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive reverse voltage is 600V.
The average rectified current is 15A.
The forward voltage is 1.3V at a forward current of 15A.
The reverse recovery time is 160ns.
It is available in a through-hole TO-220-2 Full Pack package, also known as TO-220ACFP.
The maximum operating junction temperature is 150°C.
