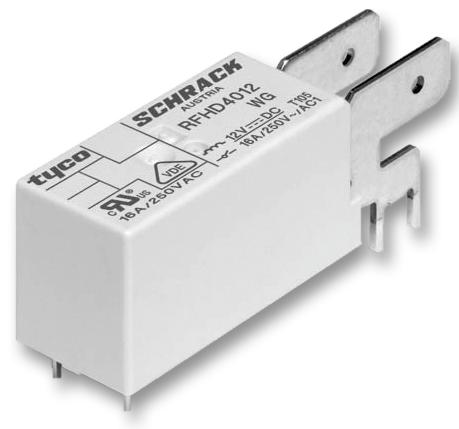

RFHD4012WG The Schrack RFHD4012WG is a PCB-mount non-latching power relay featuring a 1 Form A contact configuration and a 16A switching capacity. It operates with a 12V DC coil.
Mfr Part #:

RFHD4012WG

Available from 1 distributors
Mfr Name: Schrack
Schrack
The Schrack RFHD4012WG is a PCB-mount non-latching power relay featuring a 1 Form A contact configuration and a 16A switching capacity. It operates with a 12V DC coil.
✓ Total Stock: 505 pcs
$ Price Range: $2.16

RFHD4012WG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
505 pcs
On Request
505 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RFHD4012WG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Resistance
Coil Voltage
Contact Material
Mounting Type
Operate Time
Operating Temperature
Rated Current
Rated Voltage
Release Time
Termination Style
View Similar Products (0)

RFHD4012WG Description

Short technical summary and product information.

The Schrack RFHD4012WG is a compact PCB-mount non-latching power relay designed for high-current switching applications. It features a 1 Form A (SPST-NO) contact configuration with a rated current of 16A at 250VAC. The relay is suitable for applications requiring reliable switching in industrial control, power management, home appliances, and automation.



Key electrical specifications include a maximum switching voltage of 400VAC, a coil voltage of 12VDC, and a coil power of approximately 400mW. The contact material is AgNi 90/10, known for its long service life. The relay offers a mechanical endurance of over 10 million operations.



Designed for through-hole PCB mounting, the RFHD4012WG has a termination style of PCB pins. It operates within an ambient temperature range of -40°C to +105°C. Reinforced insulation is provided, meeting standards such as EN 61810, 60335, and 60730.

RFHD4012WG Quick Information

Product Type: PCB Mount Power Relay
Canonical Name: Schrack RFHD4012WG PCB Mount Power Relay
Subcategory: Power Relay

RFHD4012WG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RFHD4012WG Estimated Pricing

Qty Low High
1+ $2.16 $2.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

RFHD4012WG Features

  • 16A switching capacity at 250VAC
  • 12V DC coil voltage
  • 1 Form A (SPST-NO) contact
  • Through-hole PCB mounting
  • Operates up to 105°C

RFHD4012WG Applications

  • Industrial control systems
  • Power management applications
  • Home appliance control
  • Automation systems

RFHD4012WG FAQs

5 frequently asked questions generated from this part’s specifications.
What is the contact configuration of the RFHD4012WG relay?

The RFHD4012WG relay has a 1 Form A (SPST-NO) contact configuration.

What is the rated current for the RFHD4012WG relay?

The rated current for the RFHD4012WG relay is 16A.

What is the coil voltage for the RFHD4012WG relay?

The coil voltage for the RFHD4012WG relay is 12 VDC.

What is the operating temperature range of the RFHD4012WG relay?

The operating temperature range for the RFHD4012WG relay is -40°C to +105°C.

What type of mounting does the RFHD4012WG relay use?

The RFHD4012WG relay uses through-hole PCB mounting.
