RF334006WG
Schrack
The Schrack RF334006WG is a power relay featuring a 16A rated current and a 6VDC coil voltage. It offers 1 NO or 1 NC contact configuration and quick connect terminals.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,462 pcs
|
1462 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature | |
| Contact Material | |
| Rated Current | |
| Rated Voltage | |
| Termination Style |

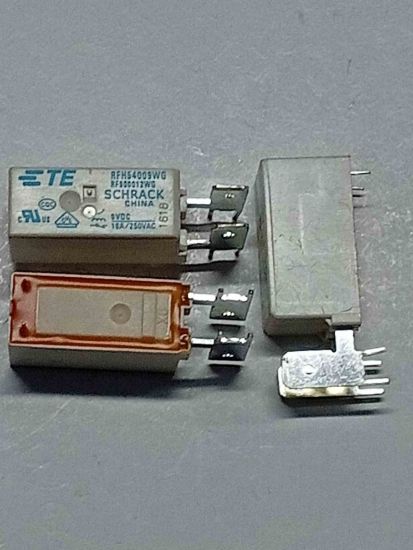

This Schrack RFH54009WG is a general-purpose power relay designed for various applications including oven control, electric heating, power supplies, air conditioning, microwaves, and hobs. It offers a 1-pole contact configuration with either a Normally Open (NO) or Normally Closed (NC) contact.
The relay has a rated current of 16A and a maximum switching capacity of 4000 VA. The coil operates at 9 VDC with a coil power of 400 mW and features Class F insulation according to UL1446. Electrical isolation is provided with a dielectric strength of 4000 Vrms between the coil and contact circuit, and 1500 Vrms for the open contact circuit. Clearance and creepage distances are both 8 mm.
With a mechanical endurance of 1x10^6 cycles, this relay is built for reliability. It supports a minimum contact load of 12VAC / 500mA and has a rated frequency of operation of 6 min^-1 with load and 1200 min^-1 without load. The ambient temperature range extends up to 105°C.
Terminals for the load side are designed for quick connection, facilitating easier assembly. The contact material is AgNi90/10. This relay is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.16 | $2.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 16 A.
The maximum switching capacity is 4000 VA.
The rated coil voltage is 9 VDC.
It uses quick connect terminals for the load side.
The ambient temperature can be up to 105°C.
The contact material is AgNi90/10.
