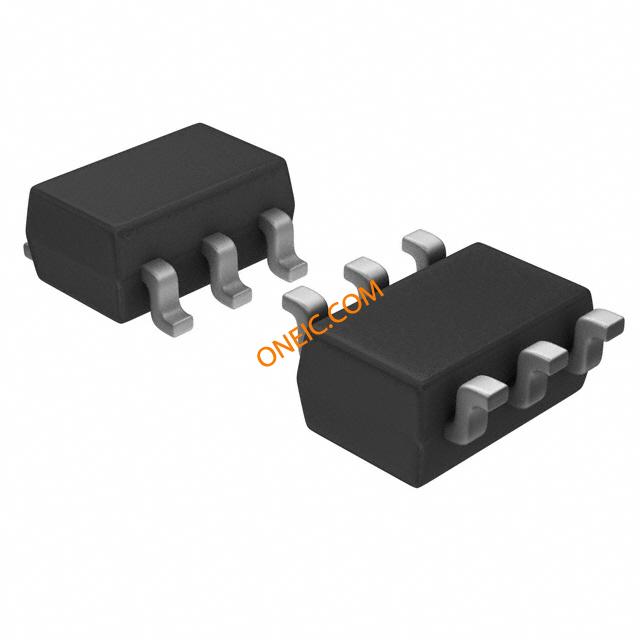

RF3023TR7 The Qorvo RF3023TR7 is a broadband SPDT RF switch designed for applications up to 4GHz. It features a 50 Ohm impedance and low insertion loss.
Mfr Part #:

RF3023TR7

Available from 1 distributors
Mfr Name: Qorvo
Qorvo
The Qorvo RF3023TR7 is a broadband SPDT RF switch designed for applications up to 4GHz. It features a 50 Ohm impedance and low insertion loss.
✓ Total Stock: 6,251 pcs

RF3023TR7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
6,251 pcs
On Request
6251 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RF3023TR7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit
Form Factor
IIP3
Impedance
Insertion Loss
Isolation
Mounting Type
Operating Temperature
Package / Case
RF Type
SVHC Present
Supplier Device Package
Tape & Reel
Topology
View Similar Products (0)

RF3023TR7 Description

Short technical summary and product information.

The Qorvo RF3023TR7 is a broadband SPDT RF switch suitable for various RF applications. It operates with a 50 Ohm impedance and offers a maximum frequency of 4GHz. Key electrical characteristics include a typical isolation of 27dB at 3GHz and a maximum insertion loss of 0.45dB at 3GHz. The device also provides a typical IIP3 of 58dBm and a 1dB compression point of 32dBm.



This RF switch is housed in a compact SC-70-6 package and is designed for surface mount applications. It operates within a temperature range of -40°C to 85°C. The standard package quantity is 2,500 units on tape and reel.



Designed for performance and reliability, the RF3023TR7 is specified for 802.11b/g RF types and features a reflective topology. Its RoHS 3 compliant status indicates adherence to environmental regulations.

RF3023TR7 Quick Information

Product Type: RF Switch
Canonical Name: Qorvo RF3023TR7 SPDT RF Switch
Subcategory: RF Misc ICs and Modules

RF3023TR7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RF3023TR7 Features

  • Broadband SPDT RF switch.
  • Maximum frequency of 4GHz.
  • 50 Ohm impedance.
  • Low insertion loss at 3GHz.
  • Operates from -40C to 85C.

RF3023TR7 Applications

  • SPDT RF switch for 802.11b/g WiFi
  • Broadband switching up to 4GHz
  • High linearity 58dBm IIP3 applications
  • Reflective switch for test equipment
  • Surface mount RF signal routing

RF3023TR7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of the RF3023TR7?

SC-70-6.

What is the operating temperature range?

-40°C to 85°C.

What is the circuit configuration?

SPDT.

What is the impedance?

50 Ohm.

What is the maximum frequency?

4GHz.

What is the isolation at 3GHz?

27dB typical.

What is the insertion loss at 3GHz?

0.45dB maximum.
