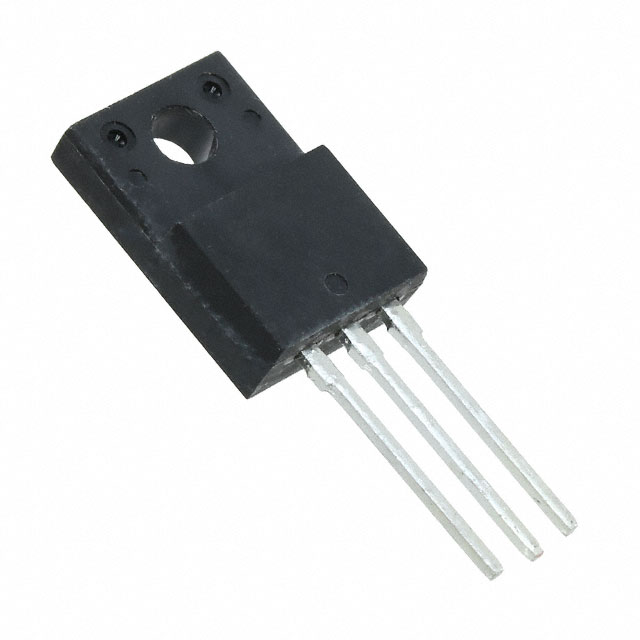

RF2001T3D ROHM Semiconductor RF2001T3D is a 300V, 10A fast recovery diode array with a common cathode configuration in a TO-220FN through-hole package.
Mfr Part #:

RF2001T3D

Available from 1 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
ROHM Semiconductor RF2001T3D is a 300V, 10A fast recovery diode array with a common cathode configuration in a TO-220FN through-hole package.
✓ Total Stock: 6,000 pcs
$ Price Range: $0.58 - $2.10

RF2001T3D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RF2001T3D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Mounting Type
Operating Temperature
Reverse Recovery Time (trr)
Speed
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

RF2001T3D Description

Short technical summary and product information.

The ROHM Semiconductor RF2001T3D is a general-purpose fast recovery diode array configured as 1 pair common cathode. It is rated for a maximum DC reverse voltage of 300V and an average rectified current of 10A per diode. The device features a maximum forward voltage of 1.3V at 10A and a typical reverse recovery time of 25ns, making it suitable for high-speed switching applications.



This diode array is housed in a TO-220-3 Full Pack (TO-220FN) through-hole package, which provides robust thermal performance with a maximum operating junction temperature of 150°C. The through-hole mounting type ensures reliable mechanical attachment in power supply and conversion circuits.



Designed for general-purpose rectification and fast switching, the RF2001T3D is commonly used in power factor correction, freewheeling diodes, and snubber circuits. Its common cathode configuration simplifies PCB layout in half-bridge and push-pull topologies.

RF2001T3D Quick Information

Product Type: Diode Array
Canonical Name: ROHM Semiconductor RF2001T3D — 300V 10A Fast Recovery Diode Array, Common Cathode, TO-220FN
Subcategory: Fast Recovery Rectifier Diode Array

RF2001T3D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RF2001T3D Estimated Pricing

Qty Low High
1+ $2.10 $2.10
10+ $1.34 $1.34
100+ $0.89 $0.89
500+ $0.71 $0.71
1,000+ $0.60 $0.60
2,500+ $0.60 $0.60
5,000+ $0.58 $0.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

RF2001T3D Features

  • 300V maximum DC reverse voltage rating.
  • 10A average rectified current per diode.
  • Fast recovery with 25ns typical trr.
  • Common cathode dual diode configuration.
  • Through-hole TO-220FN full pack package.

RF2001T3D Applications

  • Used in power factor correction circuits.
  • Ideal for freewheeling diode applications.
  • Suitable for snubber and clamping circuits.
  • Common in half-bridge and push-pull converters.

RF2001T3D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the RF2001T3D?

The maximum DC reverse voltage (Vr) is 300V.

What is the average rectified current per diode?

The average rectified current (Io) per diode is 10A.

What is the forward voltage of the RF2001T3D?

The maximum forward voltage (Vf) is 1.3V at a forward current of 10A.

What is the reverse recovery time?

The typical reverse recovery time (trr) is 25ns.

What package does the RF2001T3D come in?

It is available in a TO-220-3 Full Pack (TO-220FN) through-hole package.

What is the diode configuration?

The RF2001T3D has a 1 pair common cathode configuration.

What is the maximum operating junction temperature?

The maximum operating junction temperature (Tj) is 150°C.
