Mfr Part #:

RF2-1A-DC-2-RL

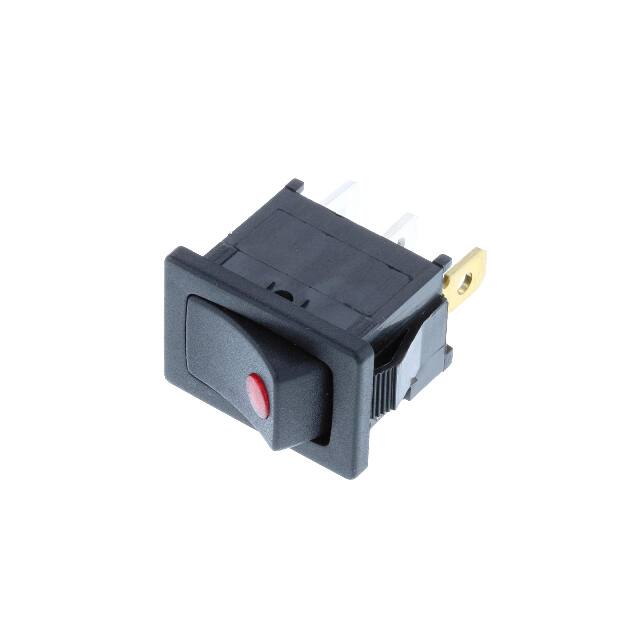

Name: RF2-1A-DC-2-RL
Brand: Switch Components
SKU: RF2-1A-DC-2-RL

Mfr Name: Switch Components

Description:

SWITCH ROCKER OFF-ON RED LEDDC

Stock on Request

RF2-1A-DC-2-RL Description

Short technical summary and product information.

SWITCH ROCKER OFF-ON RED LEDDC

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Rocker Switches
Manufacturer Name	Switch Components
Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Circuit	SPST
Color	Black
Current Rating (Amps)	16A (DC)
Illumination Type, Color	LED, Red
Illumination Voltage (Nominal)	12 VDC
Mounting Type	Panel Mount, Snap-In
Operating Temperature	-25°C ~ 85°C
Panel Cutout Dimensions	Rectangular - 19.20mm x 13.00mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating	12 V
