Mfr Part #:

RF1V-4A2B-D24

Mfr Name: Idec

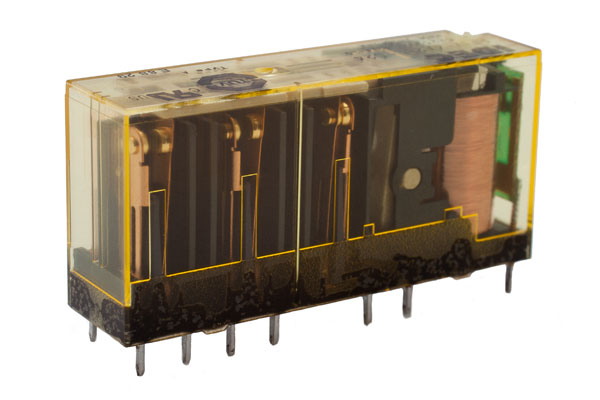

The Idec RF1V-4A2B-D24 is a force-guided safety relay designed for critical safety circuits. It features 5 normally open and 1 normally closed contacts with a 24 VDC coil voltage.

✓ Total Stock: 9 pcs

$ Price Range: $2.00

RF1V-4A2B-D24 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
DYNACO PRODUCTS ✓ Non-Authorised Inventory information	9 pcs On Request	9 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

RF1V-4A2B-D24 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Idec
Coil Voltage	24 VDC
Features	Built-in LED indicator, Counter-electromotive force models; Counter-electromotive force models
Mounting Type	Panel, DIN rail, PC board

View Similar Products (0)

RF1V-4A2B-D24 Description

Short technical summary and product information.

The Idec RF1V-4A2B-D24 is a force-guided safety relay, a crucial component for ensuring failsafe operation in safety circuits. It is designed to detect failures such as contact welding or damage to the contact spring, providing enhanced reliability.

This relay features a contact configuration of 5 normally open (NO) and 1 normally closed (NC) contacts, with a coil voltage rating of 24 VDC. The contact rating is 6A. The force-guided contact mechanism adheres to EN61810-3 standards, ensuring safe and predictable operation.

Designed for versatility, the RF1V-4A2B-D24 can be mounted on a panel, DIN rail, or PC board, making it suitable for various installation requirements. It also includes a built-in LED indicator for status monitoring and offers counter-electromotive force (CEMF) protection models. The RTIII degree of protection indicates its suitability for certain environmental conditions.

Force-guided relays like the RF1V series are often used in combination with other safety devices such as elevator controls, interlock switches, light curtains, and emergency stop switches. They are essential for applications requiring robust safety control and reliable failure detection.

RF1V-4A2B-D24 Quick Information

Product Type: Safety Relay

Series: RF1V

Canonical Name: Idec RF1V-4A2B-D24 Force Guided Safety Relay

Subcategory: Safety Relay

RF1V-4A2B-D24 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

RF1V-4A2B-D24 Estimated Pricing

Qty	Low	High
1+	$2.00	$2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

RF1V-4A2B-D24 Features

Force-guided contact mechanism for safety.
5 NO and 1 NC contacts.
24 VDC coil voltage.
6A contact rating.
Panel, DIN rail, or PC board mounting.

RF1V-4A2B-D24 Applications

Used in safety control circuits.
Detects contact welding failures.
Integrates with safety interlocks.
Suitable for elevator controls.
Works with emergency stop switches.

RF1V-4A2B-D24 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the contact configuration of the Idec RF1V-4A2B-D24?

The Idec RF1V-4A2B-D24 has 5 normally open (NO) and 1 normally closed (NC) contacts.

What is the coil voltage for the RF1V-4A2B-D24 relay?

The coil voltage for the RF1V-4A2B-D24 is 24 VDC.

What is the contact rating of the Idec RF1V-4A2B-D24?

The contact rating for the Idec RF1V-4A2B-D24 is 6A.

How can the Idec RF1V-4A2B-D24 safety relay be mounted?

The Idec RF1V-4A2B-D24 can be mounted on a panel, DIN rail, or PC board.

What protection degree does the RF1V-4A2B-D24 offer?

The RF1V-4A2B-D24 offers RTIII degree of protection.

Does the RF1V-4A2B-D24 have a built-in LED indicator?

Yes, the RF1V-4A2B-D24 features a built-in LED indicator.

What type of contact mechanism does the RF1V-4A2B-D24 use?

The RF1V-4A2B-D24 uses a force-guided contact mechanism.
