| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
34 pcs
|
34 pcs | On Request | 8 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bandwidth | |
| DC Voltage | |
| Frequency | |
| Height (Max) | |
| Input Impedance | |
| Insertion Loss | |
| Length | |
| Mounting Type | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Width |

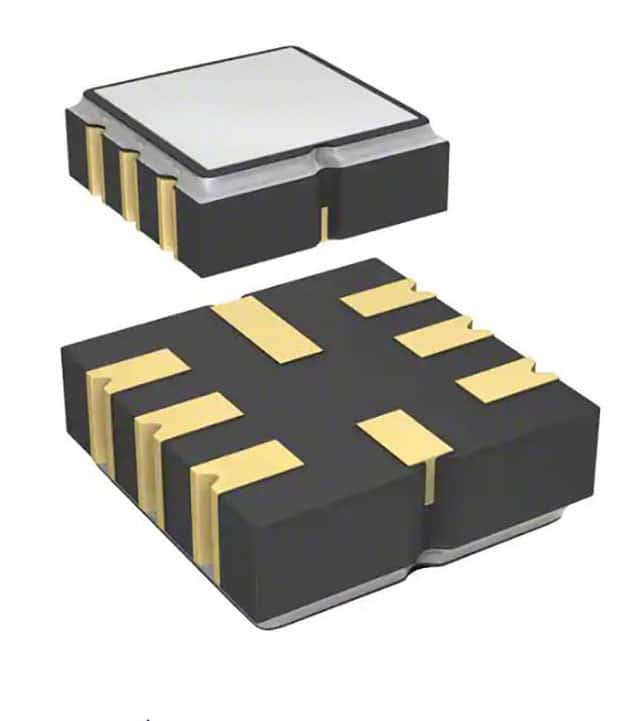

The RF1411D is a surface acoustic wave (SAW) filter manufactured by RFMi, designed for front-end selectivity in 869.2625 MHz receivers. This low-loss, coupled-resonator quartz filter is ideal for European wireless receivers used in remote control and security devices.
Key electrical specifications include a center frequency of 869.2625 MHz, a typical insertion loss of 3.3 dB, and a passband bandwidth of 1.25 MHz. The filter offers significant rejection across various frequency bands, with up to 55 dB rejection from 10-700 MHz.
This component operates within a temperature range of -45°C to +85°C and has an input/output impedance of 117 Ω with 3.7 pF. It is housed in an 8-SMD, No Lead package suitable for surface mounting.
The RF1411D complies with RoHS3 directives and has a Moisture Sensitivity Level (MSL) of 1. It is also AEC-Q200 qualified, indicating its suitability for demanding automotive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The center frequency is 869.2625 MHz.
The typical insertion loss is 3.3 dB.
The pass bandwidth is 1.25 MHz.
The operating temperature range is -45°C to +85°C.
It is available in an 8-SMD, No Lead package.
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
