| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

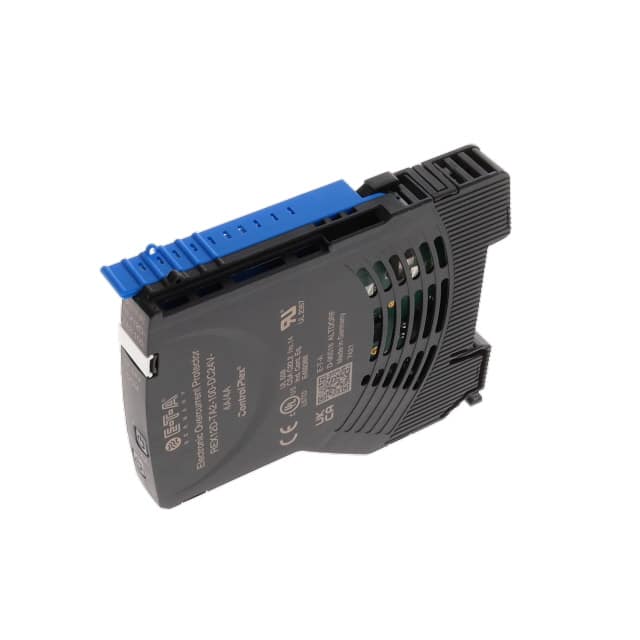

The E-T-A REX12D-TA2-100-DC24V-4A/4A is a solid state electronic circuit protector designed for modern machinery and equipment. It offers selective load protection through an electronic trip curve and is suitable for DC 24V power supply systems.
This circuit breaker has a current rating of 4A and a voltage rating of 30V. It features a 2-pole design with pushbutton actuation and illumination options in green, orange, and red. The module is designed for DIN rail mounting, facilitating easy installation and maintenance.
The REX12D system combines supply modules, overcurrent protection, and power distribution. It supports control, diagnosis, and monitoring via IO-Link and Modbus RTU, enhancing system transparency and enabling remote maintenance. The push-in terminals with press release buttons allow for tool-free, time-saving wiring.
Key features include a compact design with a width of 6.25 mm per channel, integral fail-safe elements, and the ability to switch capacitive loads up to 20,000 µF. No additional accessories are required for connecting components, saving time and money.
The voltage rating is 30 V.
The current rating is 4A.
It is designed for DIN rail mounting.
It is a solid state circuit breaker.
Yes, it supports control, diagnosis, and monitoring via IO-Link and Modbus RTU.
