| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Number of Regulators | |
| Operating Temperature | |
| Supplier Device Package | |
| Tolerance |

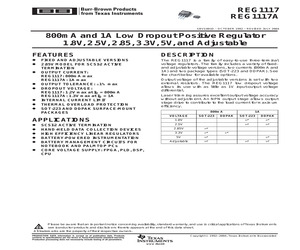

The Burr-Brown Corp REG1117-2.85 is a high-performance, fixed positive linear voltage regulator designed for various applications. It features a stable 2.85V output voltage with a low dropout voltage of 1.1V at 800mA.
This LDO regulator is capable of delivering up to 800mA of output current, making it suitable for power supply circuits requiring moderate current. The input voltage range is from 4.25V to 10V, providing flexibility in system design. The operating temperature range is from -40°C to 125°C, ensuring reliable performance in diverse environmental conditions.
The REG1117-2.85 is available in a SOT-223-4 package, which is a surface-mount type, facilitating automated assembly processes. The package is rectangular with gull wing terminals, and the body material is plastic/epoxy. The terminal pitch is 2.3mm.
This component is RoHS3 compliant and lead-free, aligning with modern environmental standards for electronic components.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 125°C.
The device is available in a TO-261-4 (TO-261AA) package, also supplied as SOT-223-4.
±1%.
1.2V at 800mA.
4.25V to 10V.
800mA maximum.
