| Category | |
| Manufacturer Name | |
| Contact Resistance | |
| Diameter | |
| Dimensions | |
| Durability | |
| Frequency | |
| Insulator Material | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current | |
| Tape & Reel | |
| Voltage |

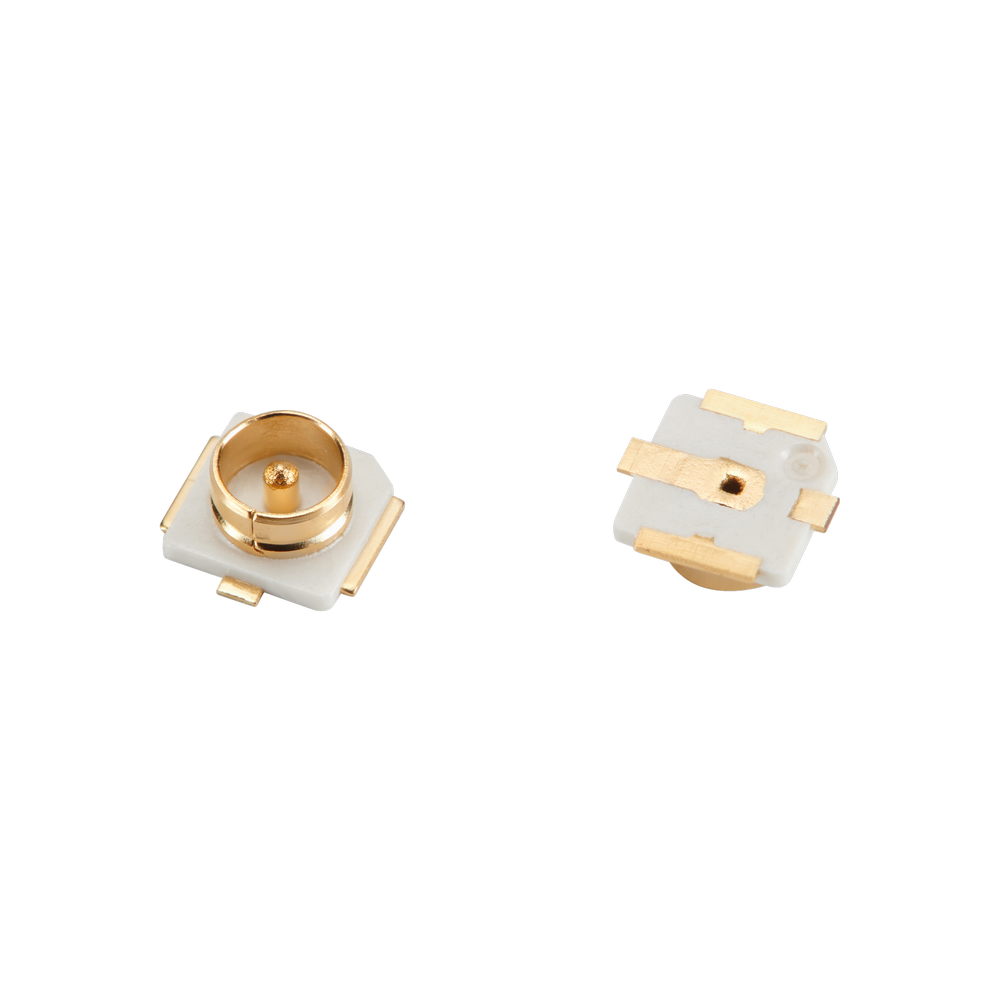

The Taoglas RECE.20279.001E.01 is a 3-pad SMD mount receptacle designed for wire-to-board connections. It offers an ultra-small, lightweight, and low-profile form factor, with dimensions of 3 x 3 x 1.25 mm.
This receptacle operates across a frequency range of DC to 8 GHz with a nominal impedance of 50 Ohms. It features a mating height of 3mm maximum and is gold-plated for superior performance. The RECE.20279.001E.01 is fully compatible with I-PEX MHFI, MHFII, MHFHT, Hirose U.FL, and other U.FL compatible connectors.
Designed for ease of assembly, it is supplied on tape and reel, making it suitable for automatic pick-and-place equipment. The insulator material is LCP UL94V-0, and it is RoHS and REACH compliant. This receptacle is commonly integrated into cellular, GPS, and wireless LAN modules.
Mechanical specifications include a diameter of 2mm, rated voltage of 60V AC, and rated current of 1A Max. It also meets durability standards of 30 cycles and withstands vibration up to 1.5mm peak and mechanical shock up to 75G peak.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is DC to 8 GHz.
The nominal impedance is 50 Ohm.
The mating height is 3mm maximum.
It uses SMD mounting.
It is supplied on tape and reel with 5000 pcs per reel.
Yes, it is compatible with I-PEX MHFI, MHFII, MHFHT, Hirose U.FL, and other U.FL compatible connectors.
