| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,161 pcs
|
9161 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
303 pcs
|
303 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
275 pcs
|
275 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Diameter | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Insulator Material | |
| Mating Cycles | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature Range | |
| Rated Current | |
| Rated Voltage | |
| Shield Termination | |
| Tape & Reel |

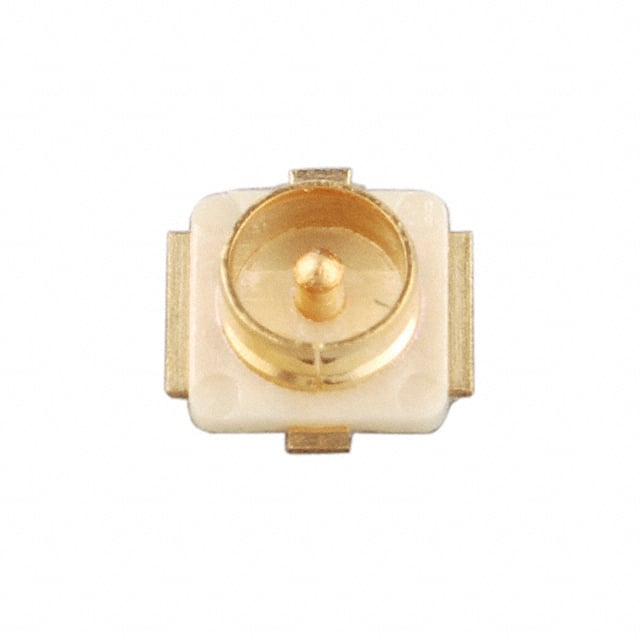

The Taoglas RECE.20279.001E.01 is a surface-mount U.FL compatible receptacle designed for RF applications. It provides a 50 Ohm transmission line with a frequency range from DC to 6 GHz. The VSWR is 1.3:1 max from DC to 3 GHz and 1.4:1 max from 3 to 6 GHz. Rated for 60 V AC and 1 A, it offers insulation resistance of 500 MΩ initial and 100 MΩ final. The operating temperature range is -40 to +90 °C.
This receptacle features a snap-on fastening mechanism and gold-plated copper alloy contacts for reliable performance. It is compatible with I-PEX MHFI, MHFII, MHFHT, Hirose U.FL, and UMC connectors. The package dimensions are 3 x 3 x 1.25 mm with a mating height of 3 mm max. It is supplied in tape and reel packaging with 5000 pieces per reel, suitable for automated pick-and-place assembly.
Commonly integrated into cellular, GPS, and wireless LAN modules, this receptacle is RoHS and REACH compliant. The center contact material is copper alloy with gold plating, and the insulator is LCP rated UL94V-0.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.09 | $1.09 |
| 10+ | $0.94 | $0.94 |
| 25+ | $0.84 | $0.84 |
| 100+ | $0.80 | $0.80 |
| 250+ | $0.75 | $0.75 |
| 500+ | $0.70 | $0.70 |
| 1,000+ | $0.66 | $0.66 |
| 2,500+ | $0.63 | $0.63 |
| 5,000+ | $0.58 | $0.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohms.
DC to 6 GHz.
1.3:1 max from DC to 3 GHz, 1.4:1 max from 3 to 6 GHz.
60 V AC.
1 A.
-40 to +90 °C.
Surface Mount.
