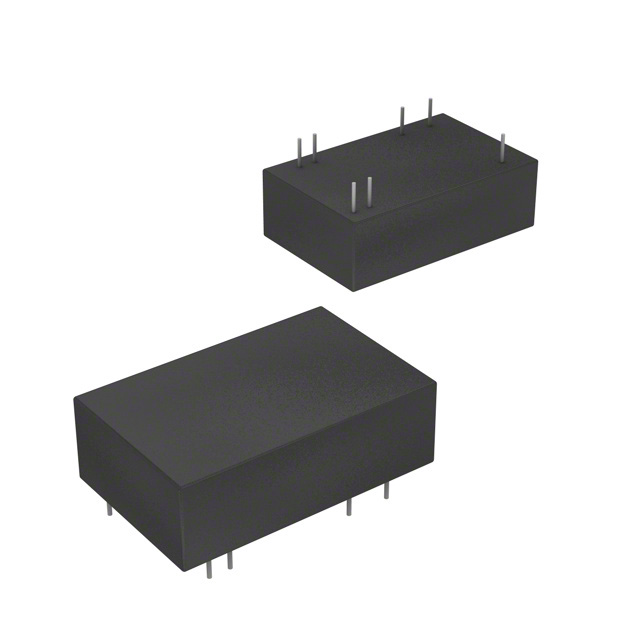

The REC6-1205SRW/R10/A is a 6W isolated DC-DC converter from Recom Power's ECONOLINE series. It delivers a regulated 5V output at up to 1000mA from a 9-18V input range, with a typical efficiency of 80%.
This converter features 10kVDC reinforced isolation, making it suitable for applications requiring high isolation such as medical equipment and industrial monitoring. The isolation capacitance is only 20pF, minimizing leakage current. It includes continuous short circuit protection and can drive capacitive loads up to 6800µF.
The converter is housed in a standard 24-DIP module with 7 leads and through-hole mounting. It operates over a temperature range of -40°C to 75°C. The part is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $54.89 | $54.89 |
| 5+ | $52.86 | $52.86 |
| 10+ | $52.00 | $52.00 |
| 30+ | $50.87 | $50.87 |
| 60+ | $50.05 | $50.05 |
| 105+ | $49.23 | $49.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 5V and the maximum output current is 1000mA.
The input voltage range is 9V to 18V DC.
The isolation voltage is 10kVDC (minimum).
The operating temperature range is -40°C to 75°C.
It comes in a 24-DIP Module with 7 leads, through-hole mounting.
Yes, it is listed as RoHS3 Compliant.
