| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38,453 pcs
|
38453 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

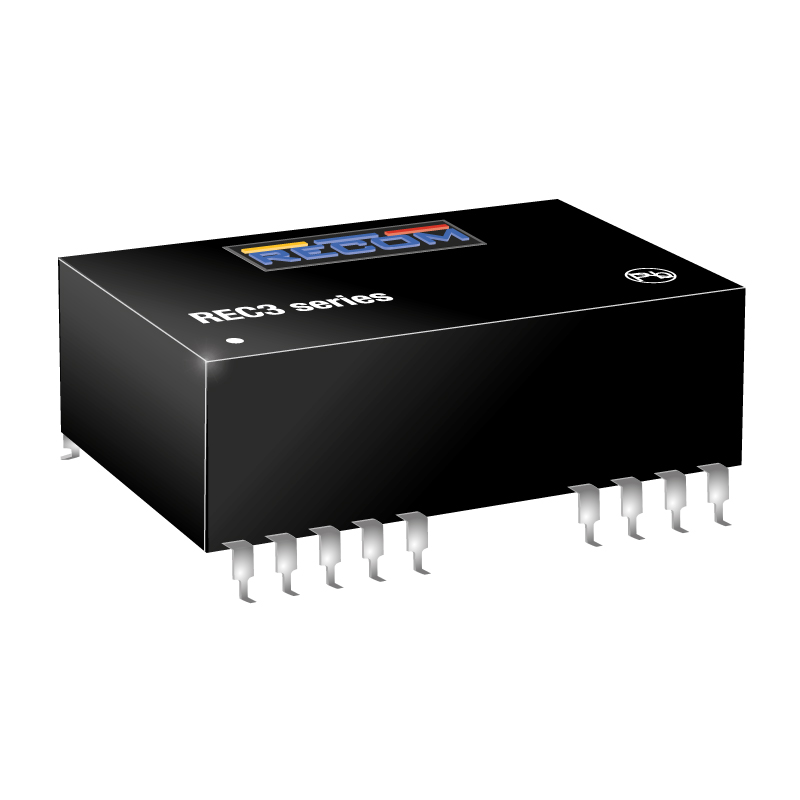

The REC3-2415DR/H1 is an isolated DC-DC converter module manufactured by Recom Power. It accepts a nominal 24V input and provides dual regulated outputs of +15V and -15V, each capable of delivering 100mA, for a total output power of 3W. The converter achieves 75% typical efficiency and includes short circuit protection (SCP).
This module is housed in a standard 24-DIP through-hole package with 12 leads, measuring 32.0mm x 20.3mm x 10.2mm. It is designed for commercial ITE (Information Technology Equipment) applications and operates over a temperature range of -40°C to 80°C. The isolated topology ensures galvanic isolation between input and output, making it suitable for noise-sensitive circuits.
The converter's dual ±15V outputs are ideal for powering operational amplifiers, analog circuits, and other applications requiring a symmetric supply. With its compact DIP package and through-hole mounting, it is easy to integrate into PCB designs. The device is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $22.19 | $22.19 |
| 5+ | $21.37 | $21.37 |
| 10+ | $21.02 | $21.02 |
| 30+ | $20.56 | $20.56 |
| 60+ | $20.22 | $20.22 |
| 105+ | $19.90 | $19.90 |
| 255+ | $17.61 | $17.61 |
| 510+ | $17.47 | $17.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 80°C
24-DIP Module (through-hole, 12 leads)
RoHS3 Compliant (unverified)
24V nominal (inferred from part number)
+15V at 100mA and -15V at 100mA
3W total
75% typical
