| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitive Load | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Filter Type | |
| Input Voltage (Nominal) | |
| Input Voltage Range | |
| Isolation Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Short circuit protection | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

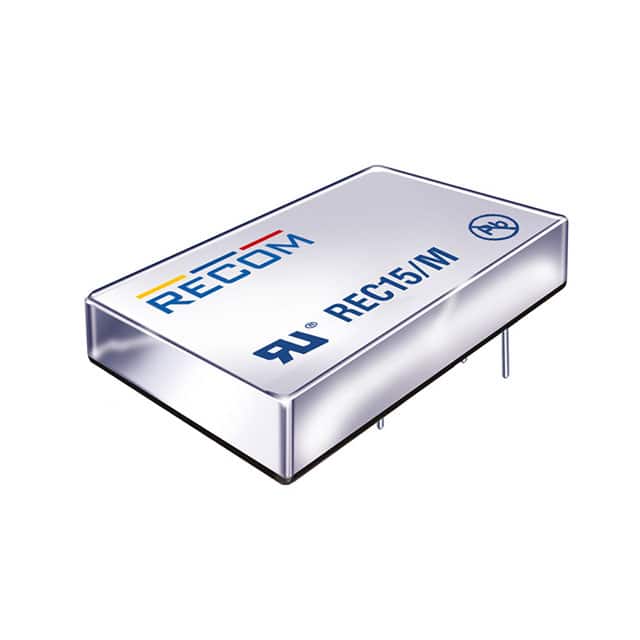

The REC15-485.1S/H2/M is a 15W isolated DC DC converter from Recom Power's REC15 series, housed in a 2" x 1" metal case. It delivers a regulated 5.1V output at up to 3A with a typical efficiency of 87% at nominal input and full load. The converter accepts a wide 4:1 input voltage range of 18-75V, designed for 48V nominal systems.
Key electrical features include 2kVDC input-to-output isolation, remote on/off control (active high), overcurrent protection, continuous short circuit protection with power limiting, and undervoltage lockout. The output is capable of driving up to 3300µF capacitive load, and the device can deliver 150% rated power for short durations to handle high startup currents.
Packaged in a 6-DIP through-hole module measuring 50.8mm x 25.4mm x 10.2mm, the converter is suitable for ITE (commercial) and medical applications. It operates over -40°C to 71°C temperature range without derating. The internal design uses full SMD components and synchronous rectification on the 5.1V output for high efficiency.
| Qty | Low | High |
|---|---|---|
| 1+ | $67.14 | $67.14 |
| 5+ | $64.64 | $64.64 |
| 10+ | $63.59 | $63.59 |
| 20+ | $62.23 | $62.23 |
| 50+ | $61.22 | $61.22 |
| 100+ | $60.22 | $60.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output is 5.1V at 3A (15W).
The input voltage range is 18-75V with a nominal of 48V.
The isolation voltage is 2kVDC.
The operating temperature range is -40°C to 71°C.
The package is a 6-DIP Module with through-hole mounting.
It is listed as RoHS3 compliant, but this has not been independently verified.
It includes overcurrent protection, short circuit protection (continuous with power limiting), undervoltage lockout, and remote on/off control.
