| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Ripple and Noise | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Switching Frequency | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Input (Min) | |
| Voltage - Isolation | |
| Width |

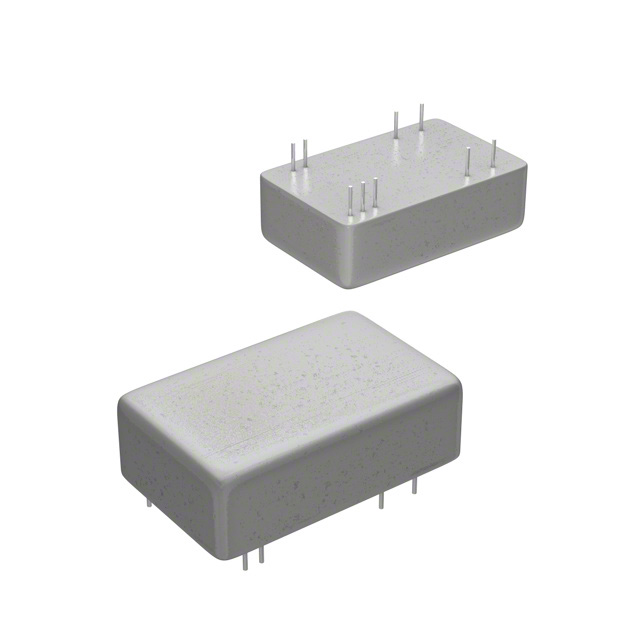

The REC10-1212SRW/H2/A/M is an isolated DC-DC converter module from Recom Power, part of the REC10 series. It delivers a single regulated 12V output at 833mA (10W) from a 2:1 input voltage range of 18V to 36V. The converter provides 2kV (2000VDC) isolation, making it suitable for commercial ITE (Information Technology Equipment) applications.
Key electrical characteristics include an efficiency of up to 86%, a switching frequency of 400kHz, and low output ripple and noise of 100mVp-p. The module features line and load regulation of ±0.5%, and requires no minimum load for operation. Protection features include remote on/off control, overcurrent protection (OCP), and short circuit protection (SCP) with power limiting.
The converter is housed in a 24-DIP module with 9 leads and through-hole mounting. Package dimensions are 32.0mm x 20.3mm x 10.2mm. It operates over a temperature range of -40°C to 75°C. The device is marked as RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited), though these compliance statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $47.18 | $47.18 |
| 5+ | $43.57 | $43.57 |
| 10+ | $41.99 | $41.99 |
| 30+ | $40.46 | $40.46 |
| 60+ | $39.42 | $39.42 |
| 105+ | $38.67 | $38.67 |
| 255+ | $38.05 | $38.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
18V to 36V.
12V at 833mA.
24-DIP Module, 9 Leads (through hole).
-40°C to 75°C.
RoHS3 Compliant (unverified).
2kV (2000VDC).
Remote On/Off, Over Current Protection (OCP), and Short Circuit Protection (SCP).
