| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

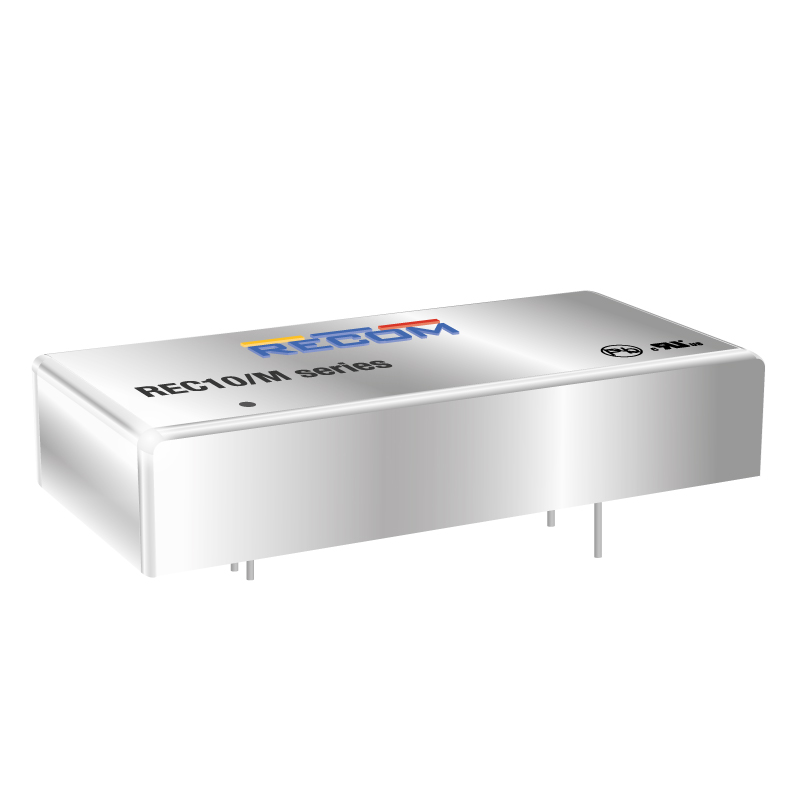

The REC10-1205D/H2/M is an isolated DC DC converter module from Recom Power, part of the REC10 series. It delivers a dual output of +5V and -5V at 1A each, for a total power of 10W. The module features an efficiency of 83% and is designed for commercial ITE (Information Technology Equipment) applications.
This converter is housed in a 24-DIP (Dual Inline Package) module with through hole mounting, making it suitable for automated assembly and prototyping. The package dimensions are 32.0mm x 20.3mm x 10.2mm. It operates over a temperature range of -40°C to +81°C.
Protection features include overcurrent protection (OCP), short circuit protection (SCP), and under voltage lockout (UVLO). The module also supports remote on/off control via an enable pin with active high logic.
| Qty | Low | High |
|---|---|---|
| 1+ | $53.62 | $53.62 |
| 5+ | $51.62 | $51.62 |
| 10+ | $50.78 | $50.78 |
| 20+ | $49.69 | $49.69 |
| 50+ | $48.89 | $48.89 |
| 100+ | $48.09 | $48.09 |
| 200+ | $42.25 | $42.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The module provides dual outputs: +5V and -5V.
Each output can deliver 1A.
The total output power is 10W.
The efficiency is 83%.
It is housed in a 24-DIP module with through hole mounting.
The operating temperature range is -40°C to +81°C.
RoHS3 compliance is indicated but unverified.
