RE46C100D8TF The Microchip Technology RE46C100D8TF is an IC Horn Driver designed for applications like smoke detectors and electronic toys. It features low quiescent current and a wide operating voltage range.
Mfr Part #:

RE46C100D8TF

Available from 2 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology RE46C100D8TF is an IC Horn Driver designed for applications like smoke detectors and electronic toys. It features low quiescent current and a wide operating voltage range.
✓ Total Stock: 4,300 pcs
$ Price Range: $2.65

RE46C100D8TF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
3,300 pcs
On Request
3300 pcs On Request 1 On Request On Request 16+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RE46C100D8TF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Mounting Type
Operating Temperature
Storage Temperature
Supplier Device Package
Supply Current
Supply Voltage
Tape & Reel
Type
View Similar Products (0)

RE46C100D8TF Description

Short technical summary and product information.

The RE46C100D8TF from Microchip Technology is an integrated circuit designed as a horn driver. It is suitable for applications utilizing self-oscillating piezoelectric horns or direct drive applications, providing feedback control and a horn enable function.



Key electrical characteristics include a low quiescent current of less than 100 nA and a low driver ON-resistance of typically 20 Ω at 9V. The device operates over a wide voltage range, specified from 1.6V to 18V, with a typical operating voltage of 9V. The operating temperature range is -40°C to 85°C.

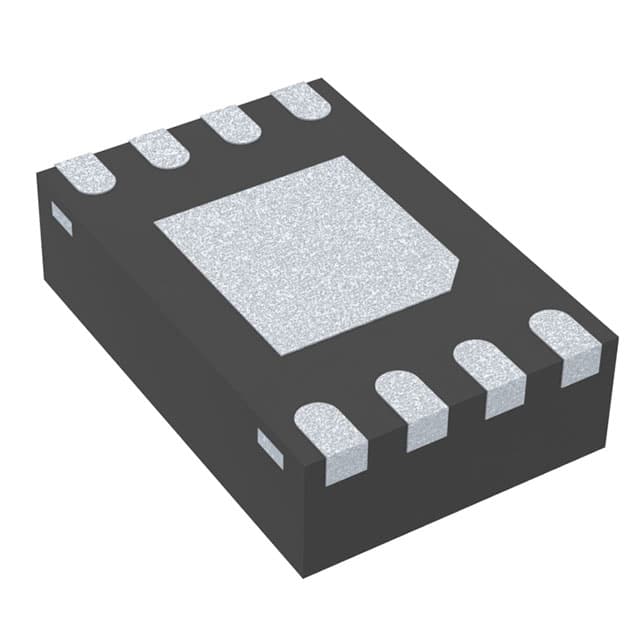

This IC is available in an 8-pin DFN package, specifically an 8-VFDFN with an exposed pad, measuring 2x3mm. The surface mountable design facilitates integration into various electronic products. Its intended applications include smoke detectors, CO detectors, personal security products, and electronic toys.

RE46C100D8TF Quick Information

Product Type: Horn Driver IC
Canonical Name: RE46C100D8TF Horn Driver IC
Subcategory: Sensor and Detector Interfaces

RE46C100D8TF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RE46C100D8TF Estimated Pricing

Qty Low High
1+ $2.65 $2.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

RE46C100D8TF Features

  • Low quiescent current under 100 nA.
  • Low driver ON-resistance typically 20 Ω.
  • Wide operating voltage range.
  • 8-pin DFN surface mount package.
  • Operates from -40°C to 85°C.

RE46C100D8TF Applications

  • Ideal for smoke detectors.
  • Suitable for CO detectors.
  • Used in personal security products.
  • Applicable for electronic toys.

RE46C100D8TF FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the RE46C100D8TF?

The operating voltage range for the RE46C100D8TF is from 1.6V to 18V.

What is the quiescent current of the RE46C100D8TF?

The quiescent current of the RE46C100D8TF is less than 100 nA.

What is the operating temperature range for this horn driver IC?

The RE46C100D8TF operates within a temperature range of -40°C to 85°C.

What package type is the RE46C100D8TF supplied in?

The RE46C100D8TF is supplied in an 8-pin DFN package.
