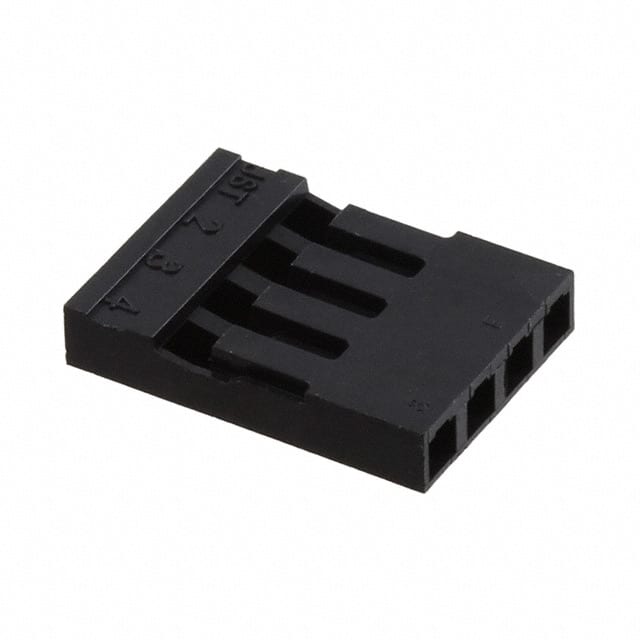

RE-04 JST RE-04 is a 4 position, single row, 2.54mm pitch receptacle housing for crimp contacts. Rated for 1A and 250V AC/DC.
Mfr Part #:

RE-04

Available from 1 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST RE-04 is a 4 position, single row, 2.54mm pitch receptacle housing for crimp contacts. Rated for 1A and 250V AC/DC.
✓ Total Stock: 12,000 pcs

RE-04 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RE-04 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Resistance
Contact Termination
Contact Type
Insulation Resistance
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
SVHC Present
Withstanding Voltage
View Similar Products (0)

RE-04 Description

Short technical summary and product information.

The JST RE-04 is a 4-position, single row rectangular connector housing from the RE series. It features a 2.54mm pitch and accepts female socket crimp contacts. The housing is designed for free hanging (in-line) mounting and supports wire gauges from 28 AWG to 22 AWG with insulation diameters of 1.0mm to 1.6mm.



Electrical ratings include 1A AC/DC current and 250V AC/DC voltage, with a maximum contact resistance of 20mΩ and minimum insulation resistance of 1000MΩ. The connector can withstand 1000V AC for one minute. Operating temperature range is -25°C to +85°C.



This housing is suitable for internal wiring in office automation equipment, personal computers, computer peripherals, and servers. The crimp termination allows for reliable and cost-effective wire-to-board connections.

RE-04 Quick Information

Product Type: Rectangular Connector Housing
Series: RE
Canonical Name: JST RE Series 4 Position Single Row 2.54mm Pitch Crimp Receptacle Housing
Subcategory: Wire-to-Board Connector Housing

RE-04 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RE-04 Features

  • 4 position single row 2.54mm pitch housing.
  • Rated for 1A AC/DC and 250V AC/DC.
  • Accepts 28 to 22 AWG wire with crimp termination.
  • Free hanging in-line mounting style.
  • Operating temperature range -25°C to +85°C.

RE-04 Applications

  • Internal wiring in office automation equipment.
  • Power and signal connections in personal computers.
  • Wire-to-board connections in computer peripherals.
  • Interconnects in servers and networking gear.

RE-04 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the RE-04 have?

The RE-04 has 4 positions in a single row.

What is the pitch of the RE-04 connector?

The pitch is 2.54mm (0.100 inches).

What is the current rating of the RE-04?

The current rating is 1A AC/DC.

What is the voltage rating of the RE-04?

The voltage rating is 250V AC/DC.

What mounting type does the RE-04 use?

The RE-04 uses free hanging (in-line) mounting.

What wire gauge range is compatible with the RE-04?

The RE-04 accepts wire gauges from 28 AWG to 22 AWG.

What is the operating temperature range of the RE-04?

The operating temperature range is -25°C to +85°C.
