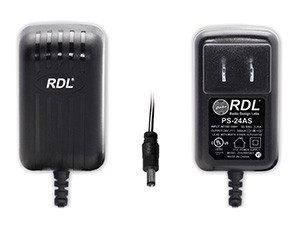

The RDL PS-24AS from Radio Design Labs is a versatile AC/DC switching power supply with a 24 VDC output and a 500 mA current rating. Designed for North American use, it features a standard NEMA 1-15P input connector for easy plug-in.
This power supply meets Energy Star Level VI efficiency standards, ensuring reduced energy consumption. Its compact dimensions of 1.65 x 2.75 x 1.45 inches make it suitable for various applications. The unit is compatible with associated RDL PS mounting accessories and offers a DC plug for quick connection to RDL modules, which can be cut off for hard wiring.
Key specifications include an input voltage range of 100 to 240 VAC and an ambient operating temperature range of 0° C to 40° C. It is approved by CSA and UL, making it suitable for ITE (Commercial) applications. The power supply is also listed as RoHS3 Compliant, MSL 1 Unlimited, and REACH Unaffected.
100-240 VAC.
24 VDC at 500 mA.
0°C to 40°C.
ENERGY STAR Level VI.
CSA and UL.
Wall mount (Class II) with fixed blade NEMA 1-15P input.
DC plug, positive center.
