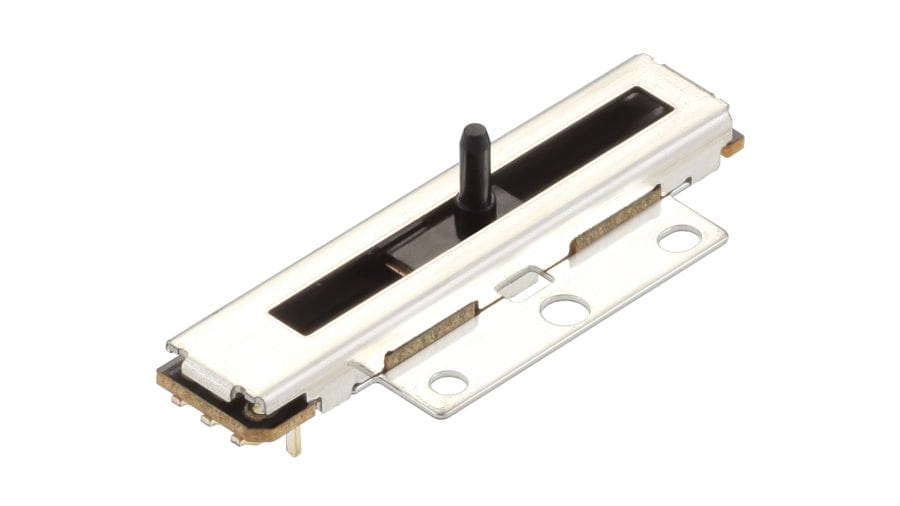

RDC1022A05 The Alps Alpine RDC1022A05 is a linear resistive position sensor designed for high precision and space-saving applications. It offers a 10kΩ total resistance and ±0.5% linearity.
Mfr Part #:

RDC1022A05

Available from 1 distributors
Mfr Name: Alps Alpine
Alps Alpine
The Alps Alpine RDC1022A05 is a linear resistive position sensor designed for high precision and space-saving applications. It offers a 10kΩ total resistance and ±0.5% linearity.
✓ Total Stock: 2,070 pcs
$ Price Range: $1.32

RDC1022A05 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
2,070 pcs
On Request
2070 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RDC1022A05 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Linearity
Rated Voltage
View Similar Products (0)

RDC1022A05 Description

Short technical summary and product information.

The Alps Alpine RDC1022A05 is a linear resistive position sensor from the RDC10 Series, engineered for high-precision applications requiring compact designs. This sensor features a total resistance of 10kΩ and guarantees a linearity of ±0.5% over its specified range.



With a travel of 22mm and a linearity guarantee range of 20mm, the RDC1022A05 is suitable for various control applications. It boasts a robust operating life of 200,000 cycles, ensuring durability in demanding environments. The sensor operates at a rated voltage of 5V DC and has compact dimensions of 6.9×31.5×2.9mm, contributing to the miniaturization of electronic devices.



Applications for this sensor include industrial automation, robotics, drones, gaming consoles, virtual and augmented reality systems, healthcare equipment, major home appliances, and automotive navigation and audio systems. Its high-precision and space-saving design make it a versatile component for modern electronic product development.

RDC1022A05 Quick Information

Product Type: Resistive Position Sensor
Series: RDC10 Series
Canonical Name: Alps Alpine RDC1022A05 Linear Resistive Position Sensor
Subcategory: Resistive Position Sensors

RDC1022A05 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RDC1022A05 Estimated Pricing

Qty Low High
1+ $1.32 $1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

RDC1022A05 Features

  • High-precision ±0.5% relative linearity.
  • Space-saving design for miniaturization.
  • 22mm travel with 20mm linearity range.
  • Long operating life of 200,000 cycles.
  • Compact dimensions: 6.9×31.5×2.9mm.

RDC1022A05 Applications

  • Used in industrial robots and drones.
  • Suitable for gaming and VR/AR systems.
  • Applicable in healthcare equipment.
  • Incorporated in major home appliances.
  • Found in automotive navigation systems.

RDC1022A05 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the total resistance of the RDC1022A05?

The total resistance is 10kΩ.

What is the linearity of the RDC1022A05?

The linearity is ±0.5%.

What is the operating life of the RDC1022A05?

The operating life is 200,000 cycles.

What is the rated voltage of the RDC1022A05?

The rated voltage is 5V DC.

What is the travel of the RDC1022A05?

The travel is 22mm.

What are the dimensions of the RDC1022A05?

The dimensions are 6.9×31.5×2.9mm.

What is the linearity guarantee range of the RDC1022A05?

The linearity guarantee range is 20mm.
