RDC.SMA.001

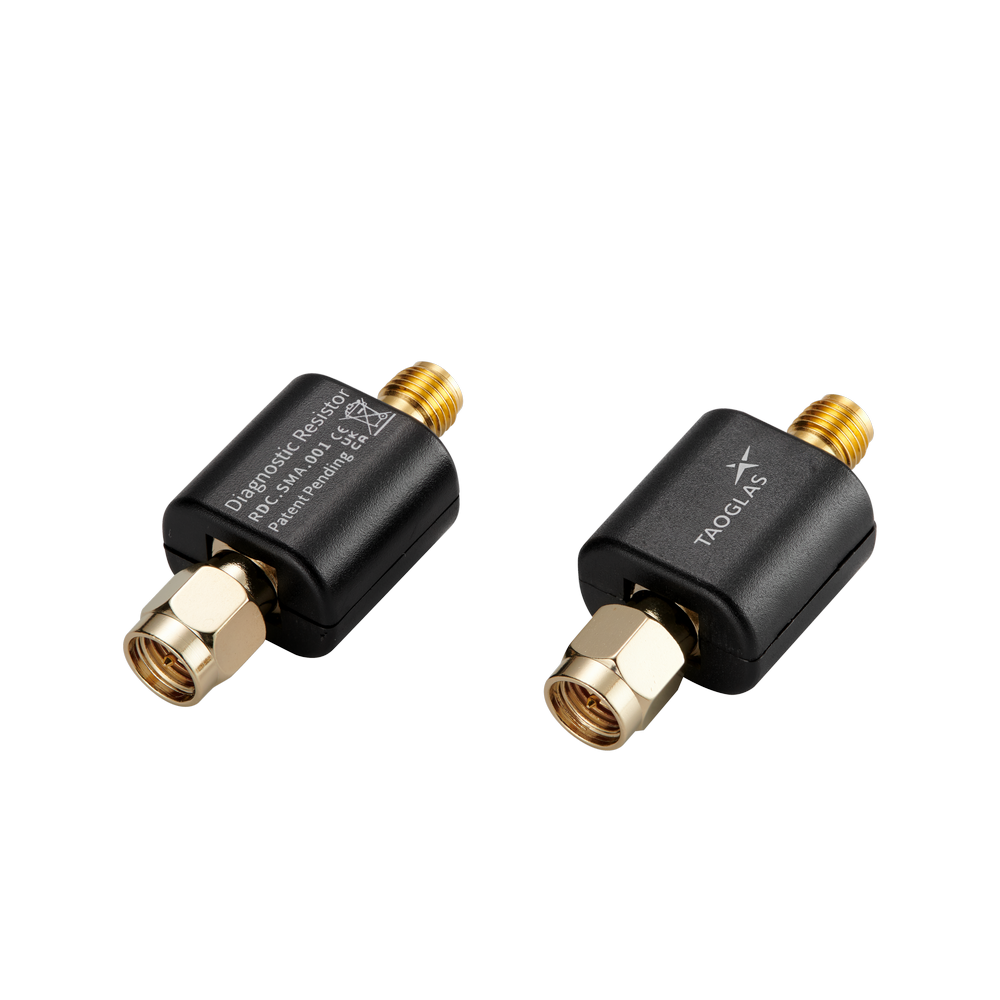

The Taoglas Limited RDC.SMA.001 is an external diagnostic circuit with a 10k ohm resistance, designed to monitor antenna connections in various applications. Its primary function is to ensure continuous connectivity between an antenna and a radio module, preventing downtime.

This device offers a simple plug-and-play solution, eliminating the need for complex internal circuit designs. It is particularly useful for prototyping and for retrofitting detection circuits into existing systems. Key specifications include a detection resistance of 10k ohm, a maximum input power of 10W, and VSWR less than 2.0 across a frequency range of 500-5999 MHz.

The RDC.SMA.001 operates within an environmental temperature range of -40°C to 85°C. Its mechanical dimensions are 37.4 x 17.3 x 12.7mm, and it utilizes SMA(M) and SMA(F) connectors. The circuit is housed in a PC/ABS material.

Typical applications for this resistor detection circuit include telematics, E-Call systems, critical communications, and smart metering. Its ability to detect antenna connection status is valuable for diagnosing installation or production issues, as well as identifying potential tampering in automotive and other critical systems.
