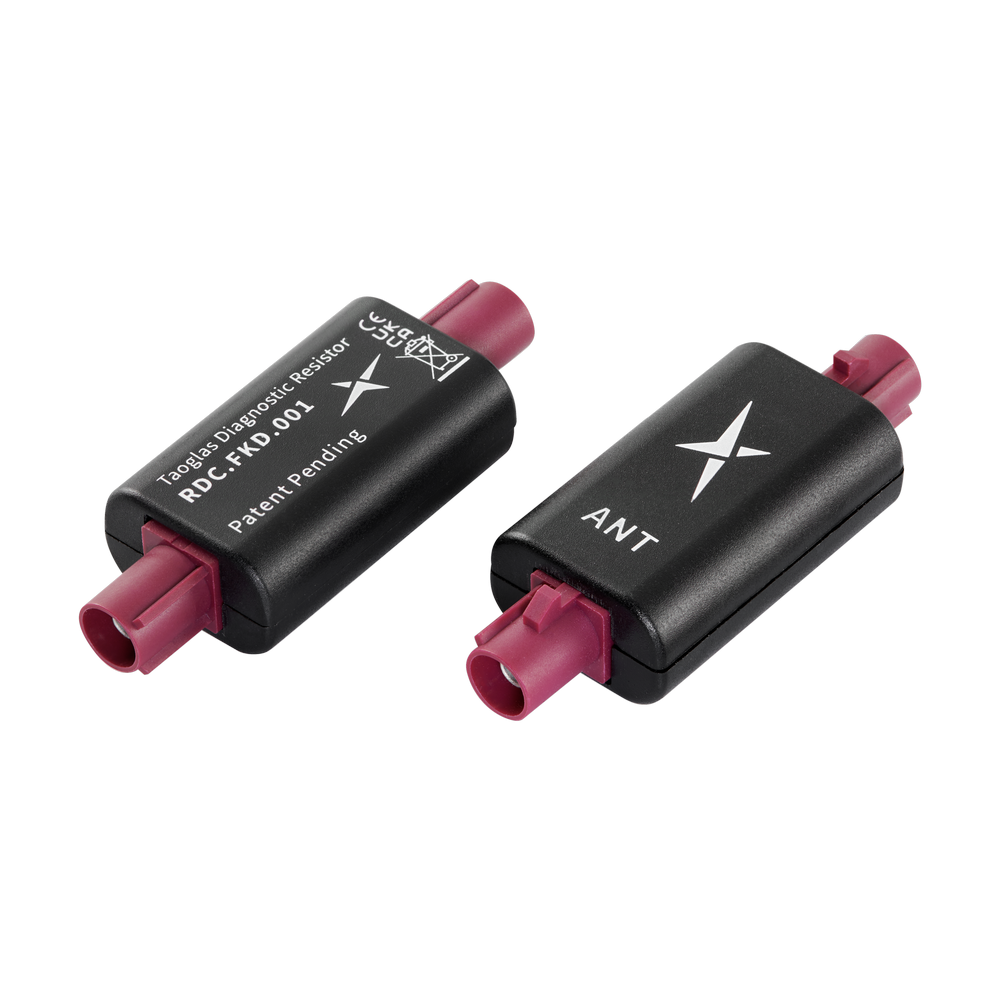

The Taoglas RDC.FKD.001 is an external diagnostic 10k ohm resistor detection circuit. It is designed as a plug-and-play solution to monitor antenna-to-module connectivity, preventing downtime. This circuit is ideal for prototyping and applications where detection was considered after the initial design.
Key electrical specifications include a 10k ohm detection resistance and a maximum input power of 10W. The VSWR is less than 2 across the 500-5999 MHz frequency range, with insertion loss varying from -0.22dB to -1.19dB depending on the frequency band. The device utilizes a FAKRA Code D connector.
Mechanically, the RDC.FKD.001 measures 55 x 20.6 x 12.6mm and weighs 8.5g. The enclosure is made of PC/ABS material. Environmentally, it operates within a temperature range of -40°C to 85°C and can withstand 95% RH non-condensing humidity at 65°C. Packaging options include bubble bags, PE bags, and cartons.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The detection resistance is 10k ohm.
The maximum input power is 10W.
VSWR is less than 2 over the frequency range 500 to 5999 MHz.
The operating temperature range is -40°C to 85°C.
It uses a FAKRA Code D connector.
Dimensions are 55 x 20.6 x 12.6 mm and weight is 8.5 g.
