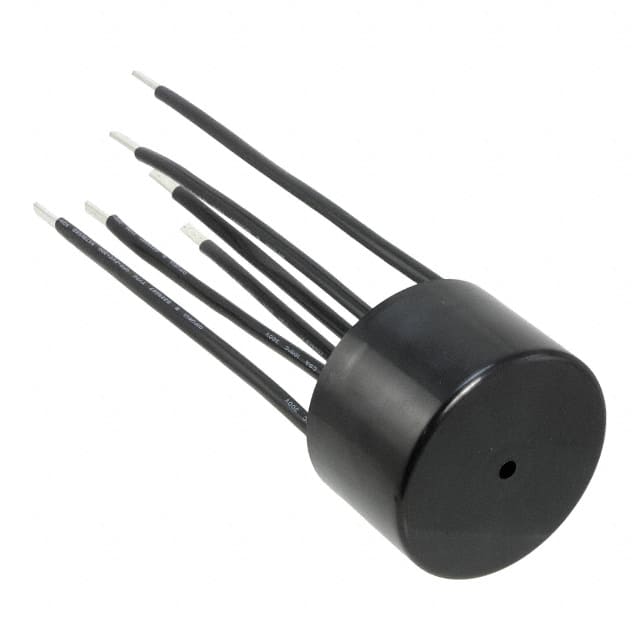

This Schaffner RD8137-64-0M5 is a common mode choke from the RD series, designed for effective EMI and RFI suppression in power line applications. It is rated for a maximum current of 64A and offers a significant inductance of 500 µH at 1 kHz, making it suitable for high-power filtering.
The choke operates at DC to 400 Hz frequencies and has a voltage rating of 600V. Its operating temperature range is from -25°C to 110°C, ensuring reliable performance in various environments. The component features through-hole mounting for secure integration into PCB assemblies.
With a DC resistance of 1.35mΩ (typical), it minimizes power loss. The physical dimensions include a length and width of 80mm and a maximum height of 50.50mm. This common mode choke is designed to attenuate common-mode interference signals in AC powerline inputs, often used in conjunction with suppression capacitors.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical current rating for the RD8137-64-0M5 is 64A.
The inductance is 500 µH at 1 kHz.
The operating voltage rating is 600V.
The operating temperature range is -25°C to 110°C.
This common mode choke is designed for through-hole mounting.
