Mfr Part #:

RD6R1A0008

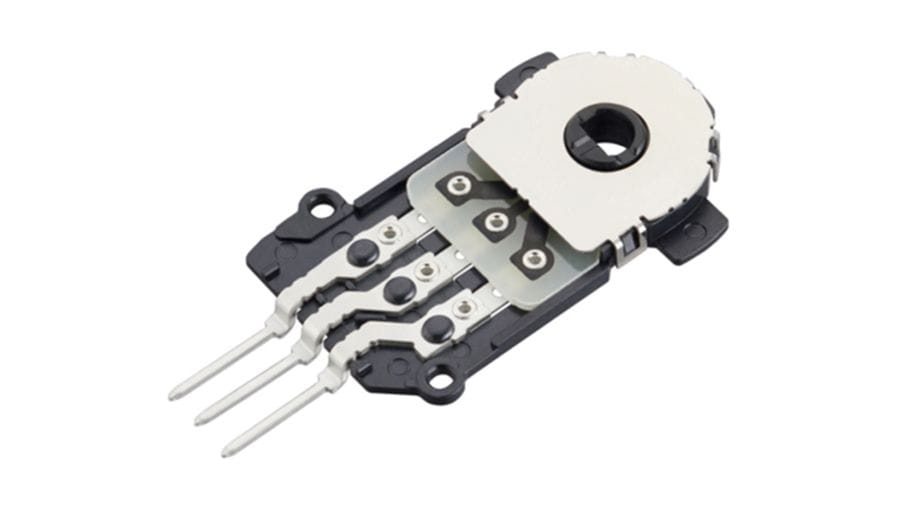

The Alps Alpine RD6R1A0008 is a rotary position sensor with a total resistance of 3.8kΩ and a linearity of ±2%. It offers an operating life of 500,000 cycles.

✓ Total Stock: 18 pcs

$ Price Range: $1.16

RD6R1A0008 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	18 pcs On Request	18 pcs	On Request	1	On Request	On Request	2026-02-25 06:16:38	On Request	On Request

RD6R1A0008 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Alps Alpine
Dimensions	20.6×32.5×3.6mm
Linearity	±2%
Mounting Type	Connector type
Operating Temperature Range	-40℃ to +85℃
Voltage	5V DC

View Similar Products (0)

RD6R1A0008 Description

Short technical summary and product information.

The Alps Alpine RD6R1A0008 is a rotary type resistive position sensor from the RD6R1A Series. It is designed for applications requiring precise position feedback.

Key electrical specifications include a total resistance of 3.8kΩ with a tolerance of ±20% and a rated voltage of 5V DC. The sensor provides an effective electrical range of 320° with a linearity guarantee range of 310° and linearity of ±2%. It boasts a long operating life of 500,000 cycles.

Mechanically, the sensor has dimensions of 20.6×32.5×3.6mm and a rotational torque of 100mN·m. It operates within a thermal range of -40℃ to +85℃. The mounting method is connector type.

This sensor is suitable for automotive, navigation, and audio systems. It complies with RoHS3, MSL Level 1, and REACH Unaffected standards.

RD6R1A0008 Quick Information

Product Type: Rotary Position Sensor

Series: RD6R1A Series

Canonical Name: Alps Alpine RD6R1A0008 Rotary Position Sensor

Subcategory: Resistive Position Sensors

RD6R1A0008 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

RD6R1A0008 Estimated Pricing

Qty	Low	High
1+	$1.16	$1.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

RD6R1A0008 Features

3.8kΩ total resistance with ±2% linearity.
500,000 cycle operating life.
Wide operating temperature range of -40℃ to +85℃.
Compact dimensions: 20.6×32.5×3.6mm.
Suitable for automotive and audio systems.

RD6R1A0008 Applications

Automotive position sensing systems.
Navigation / audio system applications.
HVAC control position feedback.
Long-life rotary position sensing.

RD6R1A0008 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the total resistance of the RD6R1A0008?

3.8kΩ with ±20% tolerance.

What is the rated voltage?

5V DC.

What is the effective electrical range?

320°.

What is the operating temperature range?

-40°C to +85°C.

What is the operating life?

500,000 cycles.

What is the mounting type?

Connector type.

What is the linearity?

±2% over 310° range.
