| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Power Rating | |
| Rated Current | |
| Type | |
| Voltage | |
| Width |

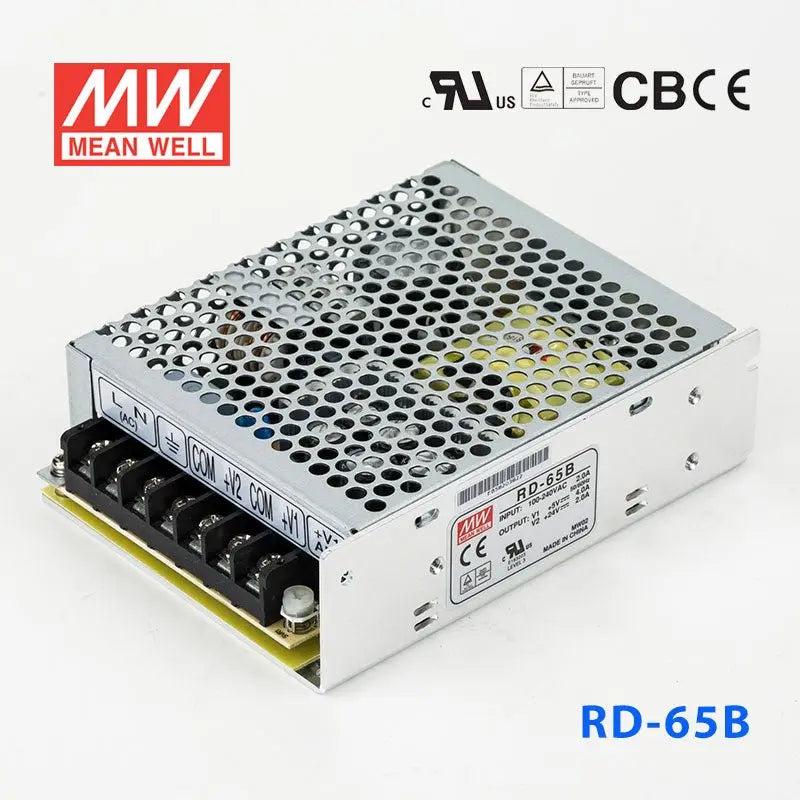

The Mean Well USA RD-65B is a versatile enclosed AC/DC power supply designed for ITE (Commercial) applications. It offers a power rating of 68W and features dual outputs, providing 5V and 24V.
This converter operates with a wide input voltage range of 88~264 VAC and includes features such as adjustable output and universal input. Protections include short circuit, overload, and over-voltage, ensuring reliable operation. The unit is built to withstand 5G vibration and operates within a temperature range of -25°C to 70°C.
With dimensions of 129mm x 98mm x 38mm, the RD-65B is designed for chassis mounting. It meets safety standards like UL62368-1 and TUV EN62368-1, and EMC standards including EN55032 class B. The product comes with a 3-year warranty, highlighting its reliability and high efficiency.
88~264 VAC or 125~373 VDC.
Dual outputs: 5V at 4A and 24V at 2A.
-25 to 70°C with derating.
129 x 98 x 38 mm.
Short circuit, overload (110~150%), and over voltage (115~135%) protection with auto-recovery.
UL62368-1 and TUV EN62368-1 approved; also meets CB, CE, cURus, and TUV requirements.
