| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Package / Case | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Weight | |
| Width |

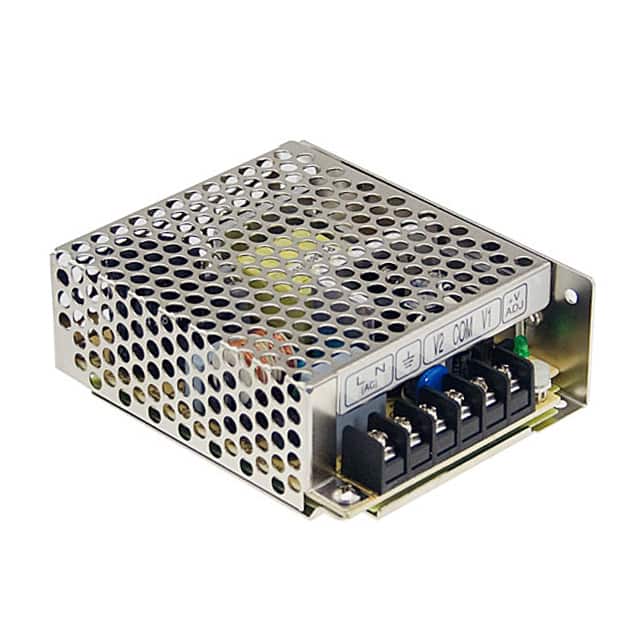

The Mean Well USA RD-35A is an enclosed AC/DC converter designed for reliable power conversion. It offers dual outputs with a rated power of 32W. The primary output (CH1) provides 5V at 4A, with an adjustable range of 4.75V to 5.5V. The secondary output (CH2) delivers 12V at 1A, with an adjustable range of 11.5V to 15.5V.
This converter operates with a universal input voltage range of 88-264VAC and features an efficiency of 79%. It includes overload protection up to 150% and over voltage protection with hiccup mode recovery. The unit is designed for chassis mounting and operates within a wide temperature range of -25°C to 70°C.
Safety and EMC compliance are met with UL60950 and TUV EN60950 approvals, along with EN55022 Class B and EN61000-3-2,-3 standards. It also complies with EN61000-4-2,3,4,5,6,8,11 and EN61000-6-2 heavy industry level criteria.
The input voltage range is 88-264VAC or 125-373VDC.
Channel 1 outputs 5V at 4A, channel 2 outputs 12V at 1A.
The operating temperature range is -25°C to +70°C with derating.
The converter is chassis mount enclosed with dimensions 99mm x 82mm x 36mm.
Overload protection at 110-150% rated output power and hiccup mode over voltage protection with automatic recovery.
It is approved to UL60950 and TUV EN60950 safety standards.
