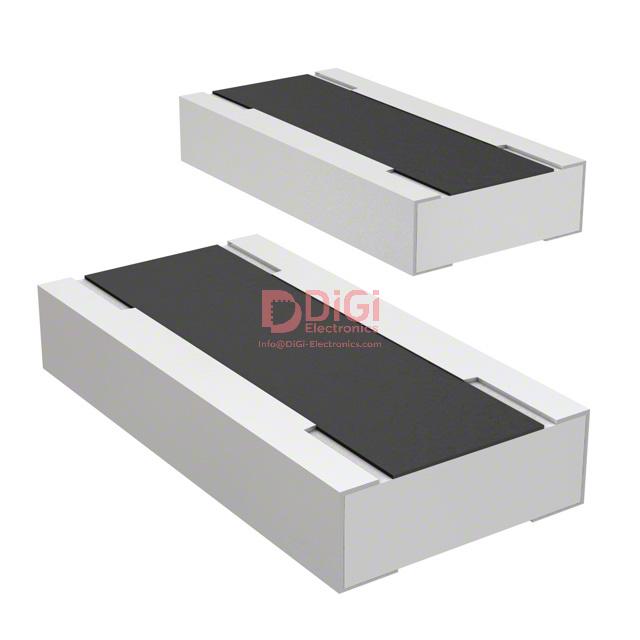

RCWL1210R100JNEA The Vishay Dale RCWL1210R100JNEA is a thick film surface mount resistor with a resistance of 0.1 Ohm and a tolerance of ±5%. It is rated for 1/3W power and comes in a 1210 package.
Mfr Part #:

RCWL1210R100JNEA

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale RCWL1210R100JNEA is a thick film surface mount resistor with a resistance of 0.1 Ohm and a tolerance of ±5%. It is rated for 1/3W power and comes in a 1210 package.
✓ Total Stock: 4,608 pcs
$ Price Range: $0.02

RCWL1210R100JNEA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
4,608 pcs
On Request
4608 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RCWL1210R100JNEA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RCWL1210R100JNEA Description

Short technical summary and product information.

This Vishay Dale RCWL1210R100JNEA is a high-quality thick film surface mount resistor designed for demanding applications. It offers a low resistance value of 0.1 Ohms with a tight tolerance of ±5%, making it suitable for current sensing and shunt applications.



The resistor is rated for 1/3W power at 70°C and operates across a wide temperature range of -55°C to +155°C. Its temperature coefficient is ±200ppm/°C, ensuring stable performance under varying thermal conditions. The component is built on a high-quality ceramic substrate with a protective overglaze and solder contacts on a Ni barrier layer.



Packaged in the compact 1210 (3225 Metric) case size, this resistor is designed for surface mounting. Its dimensions are 3.20mm in length and 2.50mm in width, with a height of 0.60mm. The RCWL1210R100JNEA is AEC-Q200 qualified, indicating its suitability for automotive applications and other environments requiring high reliability.

RCWL1210R100JNEA Quick Information

Product Type: Thick Film Surface Mount Resistor
Series: RCWL1210
Canonical Name: Vishay Dale RCWL1210 Series Thick Film Surface Mount Resistor, 0.1 Ohm, 5% Tolerance, 1/3W, 1210 Package
Subcategory: Surface Mount

RCWL1210R100JNEA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RCWL1210R100JNEA Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RCWL1210R100JNEA Features

  • Thick film surface mount resistor.
  • Low resistance value of 0.1 Ohms.
  • ±5% tolerance for precise resistance.
  • Rated for 1/3W power at 70°C.
  • AEC-Q200 qualified for automotive use.

RCWL1210R100JNEA Applications

  • Suitable for current sensing.
  • Used in automotive applications.
  • Ideal for shunt circuits.
  • General purpose surface mount needs.

RCWL1210R100JNEA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance of the RCWL1210R100JNEA resistor?

The resistance of the RCWL1210R100JNEA resistor is 0.1 Ohms.

What is the tolerance of the RCWL1210R100JNEA resistor?

The tolerance of the RCWL1210R100JNEA resistor is ±5%.

What is the power rating of the RCWL1210R100JNEA resistor?

The power rating of the RCWL1210R100JNEA resistor is 1/3W.

What is the operating temperature range for the RCWL1210R100JNEA resistor?

The operating temperature range for the RCWL1210R100JNEA resistor is -55°C to +155°C.

What is the package type of the RCWL1210R100JNEA resistor?

The package type of the RCWL1210R100JNEA resistor is 1210.

Is the RCWL1210R100JNEA resistor AEC-Q200 qualified?

Yes, the RCWL1210R100JNEA resistor is AEC-Q200 qualified.
