| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

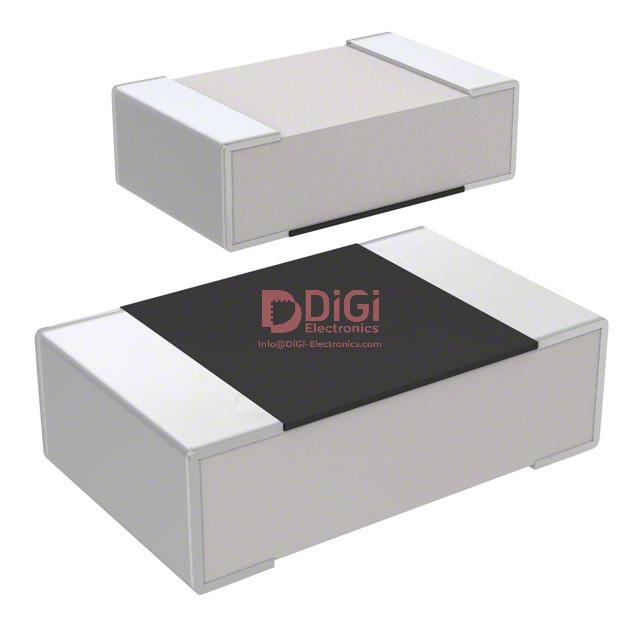

The Vishay Dale RCS0805150RFKEA is an anti-surge, high power thick film chip resistor designed for demanding applications. It features a resistance of 150 Ohms with a tight tolerance of ±1% and a power rating of 0.5W at 70°C.
This resistor operates within a temperature range of -55°C to +155°C and has a maximum permissible film temperature of 155°C. It meets AEC-Q200 qualification, indicating its suitability for automotive and industrial environments. The component is constructed with thick film technology and comes in an 0805 (2012 Metric) package.
Key electrical characteristics include a maximum operating voltage of 150V DC and a temperature coefficient of ±100ppm/°C. The maximum resistance change after 1000 hours of operation at rated power is ≤1.0%, and after 8000 hours is ≤2.0%. It also offers superior ESD surge characteristics and excellent surge pulse capability compared to standard chip resistors.
Applications include automotive, industrial, telecommunications, and medical sectors. The 0805 package size measures 2.00mm x 1.25mm with a height of 0.50mm, suitable for surface mount assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the RCS0805150RFKEA resistor is 150 Ohms.
The tolerance of the RCS0805150RFKEA resistor is ±1%.
The power rating of the RCS0805150RFKEA resistor is 0.5W.
The temperature coefficient of the RCS0805150RFKEA resistor is ±100ppm/°C.
The package type for the RCS0805150RFKEA resistor is 0805 (2012 Metric).
The operating temperature range for the RCS0805150RFKEA resistor is -55°C to +155°C.
Yes, the RCS0805150RFKEA resistor is AEC-Q200 qualified.
