| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
61 pcs
|
61 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

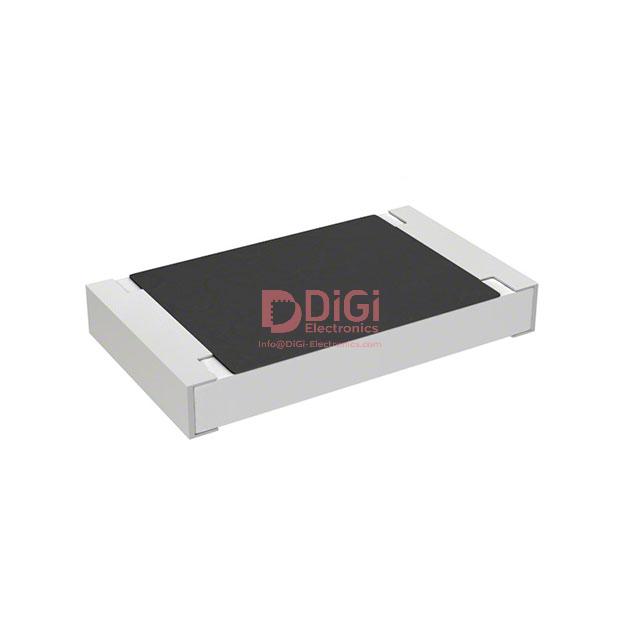

The Vishay Dale RCS0805100RJNEA is a surface mount chip resistor in the 0805 package size. It features a resistance of 100 ohms with a tolerance of ±5%, and a power rating of 0.5W. The resistor is constructed with a thick film composition, suitable for automated assembly and high-density mounting. It operates within a temperature range of -55°C to 155°C, making it suitable for various environmental conditions.
This resistor is compliant with automotive standards (AEC-Q200) and features pulse withstanding capabilities. Its small size (2.00mm x 1.25mm x 0.50mm) allows for use in space-constrained applications such as consumer electronics, automotive modules, and industrial equipment. The device is supplied in tape and reel packaging, compatible with standard surface-mount assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 100 ohms.
The tolerance is ±5%.
The power rating is 0.5W (1/2W).
It operates from -55°C to 155°C.
It uses the 0805 (2012 Metric) package size.
