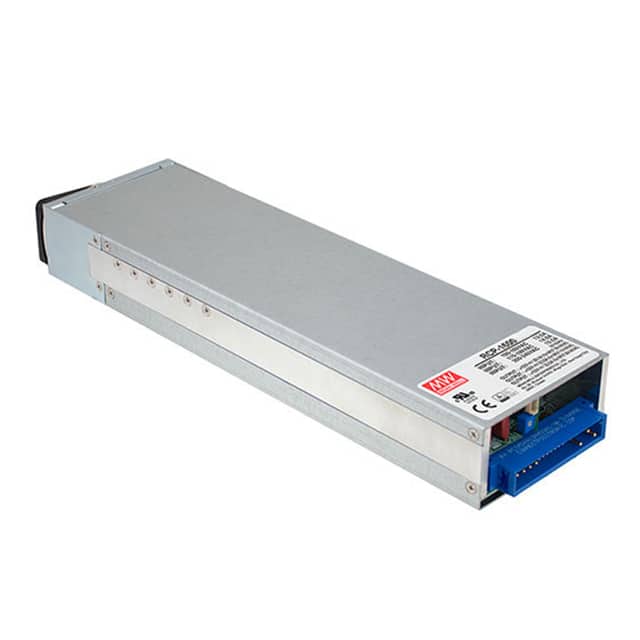

The Mean Well RCP-1600-12 is a high-power AC/DC converter designed for demanding applications. It delivers a stable 12Vdc output with a maximum current of 125A, totaling 1500W of power.
This power supply operates with an input voltage range of 90 to 264Vac and features built-in active PFC for improved efficiency, rated at 88.5%. Its operating temperature range is -30°C to +70°C, with derating applied at higher temperatures.
Designed for industrial and commercial IT equipment, the RCP-1600-12 features a rack mountable, enclosed form factor. Its dimensions are 300.0mm in length, 85.0mm in width, and 41.0mm in height. Key features include adjustable output and an I²C interface.
Safety certifications include CB, CE, cURus, and TUV, with specific industrial safety standards TUV EN 62368-1 and UL 62368-1 met. The unit has a single output and provides 3kV of isolation voltage.
It provides a fixed 12V DC output capable of delivering up to 125A.
Yes, it accepts a wide AC input range from 90 to 264Vac.
The unit operates reliably between -30 and +70 degrees Celsius.
It utilizes a rack mount configuration within an enclosed chassis.
The device features an I²C interface for digital monitoring and control.
It holds CB, CE, cURus, and TUV approvals compliant with EN 62368-1 and UL 62368-1.
