| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36,000 pcs
|
36000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,012 pcs
|
1012 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |
The RCLAMP3374N.TCT is a steering (rail to rail) TVS diode from Semtech designed for circuit protection in automotive and Ethernet applications. It features a reverse standoff voltage of 3.3V and a clamping voltage of 18V. The device can handle peak pulse currents up to 25A (8/20µs) and has a peak pulse power rating of 1000W (1kW).
This TVS diode offers 4 unidirectional channels, making it suitable for protecting multiple lines. It also provides power line protection. The typical capacitance is 3.6pF at 1MHz, which is beneficial for high-speed data lines.

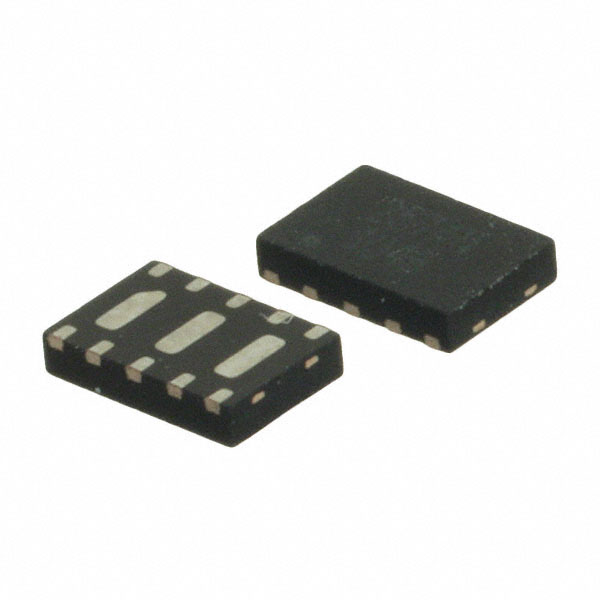

The device is surface mount and comes in a 10-UDFN exposed pad package (SLP3020N10). It can operate over a temperature range of -40°C to 125°C. The RoHS3 compliance and MSL 1 unlimited rating facilitate its use in environmentally sensitive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.90 | $2.90 |
| 10+ | $1.91 | $1.91 |
| 100+ | $1.36 | $1.36 |
| 500+ | $1.11 | $1.11 |
| 1,000+ | $1.01 | $1.01 |
| 3,000+ | $1.01 | $1.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3V.
18V.
25A at 8/20µs.
10-UDFN exposed pad (SLP3020N10), surface mount.
4 unidirectional channels.
3.6pF at 1MHz.
Automotive and Ethernet.
