| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,691 pcs
|
9691 pcs | On Request | 1 | On Request | On Request | 1742+ | On Request | On Request | |
|
5,687 pcs
|
5687 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Capacitance @ Frequency | |
| Current | |
| Dynamic Resistance | |
| EFT Protection | |
| ESD Protection | |
| ESD Protection (Maximum @ IEC 61000-4-2 Air) | |
| ESD Protection (Maximum @ IEC 61000-4-2 Contact) | |
| Halogen Free | |
| Height | |
| Lead Finish | |
| Lightning Protection | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Package Dimensions | |
| Power | |
| Power Line Protection | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |
The Semtech RCLAMP3328P.TZT is a low-capacitance TVS diode designed to protect up to eight high-speed data lines from ESD events. It features a flow-through package design optimized for high-speed lines, minimizing signal attenuation and ensuring consistent impedance.
This device provides robust protection against IEC 61000-4-2 ESD events up to ±30kV air and ±25kV contact. It has a low dynamic resistance of 0.35 Ohms (typical) and a maximum capacitance of 0.65pF (I/O to Ground), allowing operation above 5GHz. The RCLAMP3328P.TZT has a peak pulse power rating of 75W and a peak pulse current of 5A (8/20µs).
Applications include USB 3.0, HDMI 1.3/1.4, V-By-One, and LVDS interfaces. The RCLAMP3328P.TZT is manufactured using Semtech's proprietary low voltage EPD technology and operates at voltages up to 3.3 volts. It is supplied in a 9-pin SGP3810N9 package with a surface mount type.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RCLAMP3328P.TZT provides ESD protection up to ±30kV via air discharge and ±25kV via contact discharge per IEC 61000-4-2.
The maximum capacitance on each line to ground for the RCLAMP3328P.TZT is 0.65pF.
The clamping voltage for the RCLAMP3328P.TZT is 10.5V.
The RCLAMP3328P.TZT has a peak pulse current rating of 5A for an 8/20µs waveform.

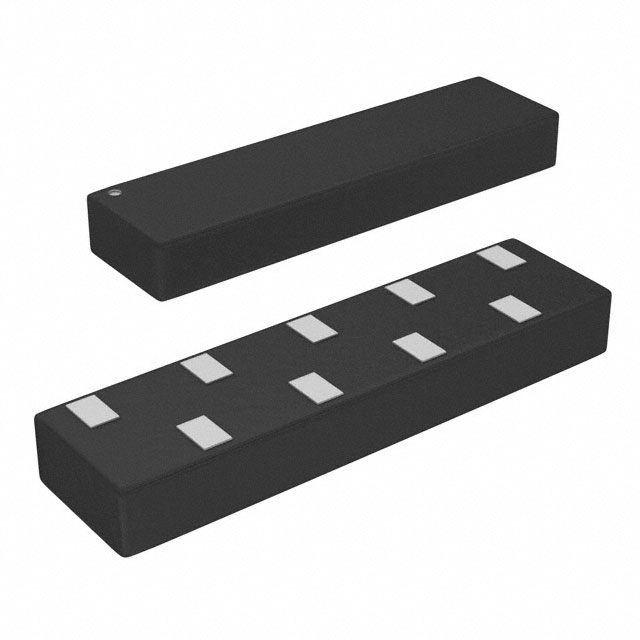

The RCLAMP3328P.TZT is supplied in a 9-pin SGP3810N9 package, which is a 9-UDFN type.
The RCLAMP3328P.TZT operates between -55°C and 125°C junction temperature.
The RCLAMP3328P.TZT is suitable for applications such as HDMI 1.3/1.4, V-By-One, USB 3.0, eDP, MHL, LVDS, and eSATA interfaces.
