| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,880 pcs
|
7880 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage | |
| Voltage - Reverse Standoff (Typ) |

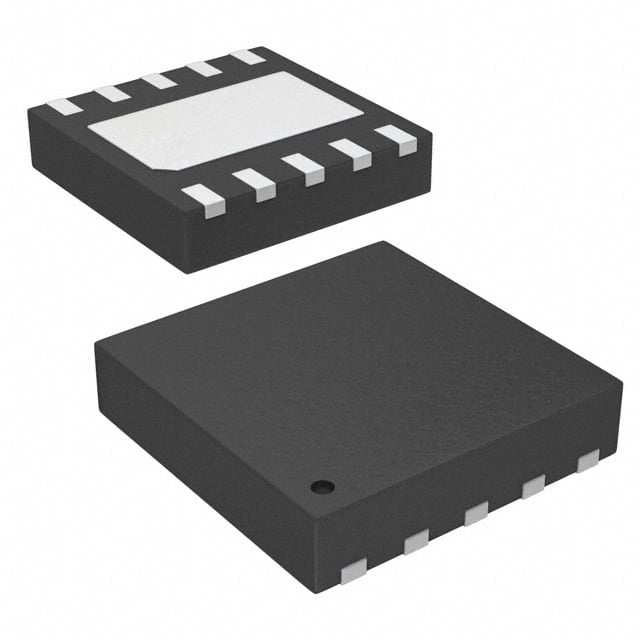

The Semtech RCLAMP3304N.TCT is a steering rail-to-rail TVS diode designed for general purpose circuit protection. It features a reverse standoff voltage of 3.3V and a clamping voltage of 18V at 25A peak pulse current (8/20µs). The device integrates four unidirectional channels capable of handling 450W peak pulse power, with a low capacitance of 3.8 pF @ 1 MHz to minimize signal degradation.
This TVS diode provides power line protection and is suitable for low-voltage data line applications. Mounting type is surface mount in a 10-UFDFN exposed pad package, with supplier device package SLP2626P10 (2.6x2.6). Operating temperature ranges from -55°C to 125°C, ensuring reliable performance in harsh environments. The rail-to-rail steering topology makes it ideal for protecting high-speed interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.16 | $2.16 |
| 10+ | $1.53 | $1.53 |
| 100+ | $1.15 | $1.15 |
| 500+ | $0.99 | $0.99 |
| 1,000+ | $0.91 | $0.91 |
| 3,000+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3 V
18 V
25 A (8/20µs)
10-UFDFN Exposed Pad (SLP2626P10)
4
-55°C to 125°C
