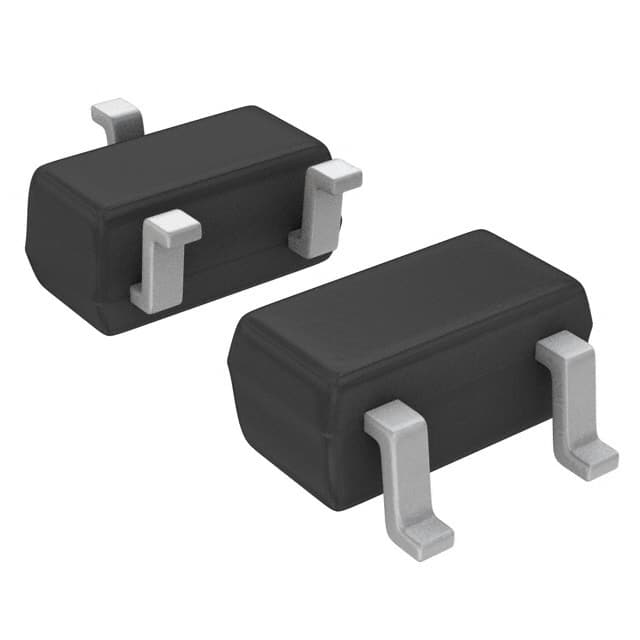

The RCLAMP2402B.TCT is a Zener TVS diode array manufactured by Semtech. It features a reverse standoff voltage of 24V and a maximum clamping voltage of 55V at 4A peak pulse current (8/20µs). The device can handle 200W peak pulse power, making it suitable for transient voltage suppression in sensitive electronic circuits.\n\nThis TVS diode array integrates two unidirectional channels and one bidirectional channel, providing protection for multiple data lines. With a typical capacitance of 0.6pF at 1MHz, it is optimized for high-speed signal integrity, particularly in HDMI interfaces.\n\nThe RCLAMP2402B.TCT is housed in a surface mount SC-75 package (also available as SOT-416 and SOT523), allowing for compact PCB designs. It operates over a temperature range of -55°C to 125°C (TJ).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.30 | $1.30 |
| 10+ | $1.02 | $1.02 |
| 100+ | $0.73 | $0.73 |
| 500+ | $0.59 | $0.59 |
| 1,000+ | $0.52 | $0.52 |
| 3,000+ | $0.49 | $0.49 |
| 6,000+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 24V.
The maximum clamping voltage is 55V at 4A peak pulse current.
The peak pulse current is 4A (8/20µs).
It is available in SC-75, SOT-416, and SC-75 (SOT523) surface mount packages.
The typical capacitance is 0.6pF at 1MHz.
It has 2 unidirectional channels and 1 bidirectional channel.
It is designed for HDMI applications.
