| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Reverse Standoff Voltage | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |

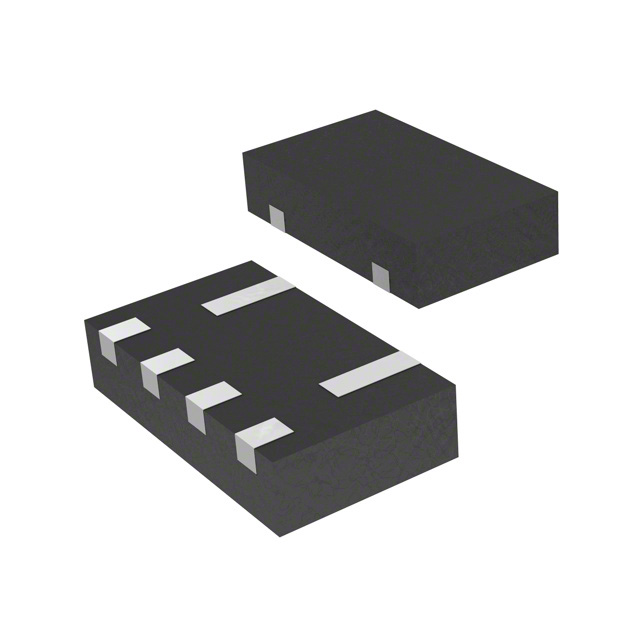

The Semtech RCLAMP1624T.TCT is a transient voltage suppression diode designed for ESD protection in high-speed data interfaces. It features three unidirectional channels configured in a steering (rail-to-rail) topology.
Electrical specifications include a reverse standoff voltage of 5V, a clamping voltage of 15V, a peak pulse current of 5A (8/20µs), and a peak pulse power rating of 75W. Typical capacitance is 0.7pF at 1MHz, making it suitable for preserving signal integrity.
This TVS diode is intended for applications such as USB OTG and power line protection. It is surface mountable in a 6-XFDFN package with a supplier device package of SLP1710P4T. The operating temperature range is -55°C to 125°C (junction).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.43 | $1.43 |
| 10+ | $1.04 | $1.04 |
| 100+ | $0.75 | $0.75 |
| 500+ | $0.64 | $0.64 |
| 1,000+ | $0.57 | $0.57 |
| 3,000+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5V.
15V.
5A (8/20µs).
6-XFDFN (supplier device package SLP1710P4T).
3 unidirectional channels.
0.7pF typical at 1MHz.
-55°C to 125°C (junction).
