| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,466 pcs
|
1466 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Dimensions | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| SVHC Present | |
| Storage Temperature |

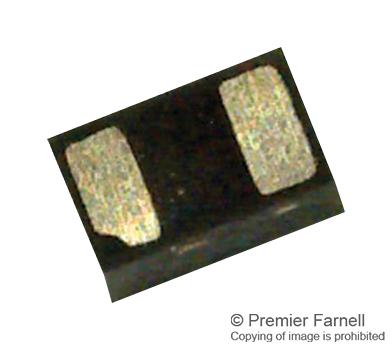

The Semtech RCLAMP1521P.TCT is an ultra-low capacitance transient voltage suppressor (TVS) diode engineered for protecting high-speed data lines in applications such as cellular phones and USB ports.
This device provides superior ESD immunity, with a maximum capacitance of 0.3pF, ensuring minimal signal attenuation in circuits operating above 3GHz. It features bidirectional protection and can withstand ESD levels up to ±15kV air and ±8kV contact. The TVS diode has a peak pulse power rating of 120 Watts and a peak pulse current of 4 A.
Housed in a compact SLP1006P2 package measuring 1.0 x 0.6 x 0.5mm, the RCLAMP1521P.TCT is ideal for space-constrained electronic designs. Its solid-state silicon-avalanche technology and low clamping voltage ensure reliable, long-lasting protection for sensitive electronics while maintaining excellent electrical performance.
The operating temperature range is -55°C to +125°C, and storage temperature is -55°C to +150°C. The RoHS and WEEE compliant package features a lead-free NiPdAu finish.
The maximum capacitance of the Semtech RCLAMP1521P.TCT is 0.3pF.
The RCLAMP1521P.TCT withstands ESD levels up to ±15kV air and ±8kV contact.
The peak pulse power rating for the RCLAMP1521P.TCT is 120 Watts.
The reverse stand-off voltage is 15 V.
The clamping voltage is 28 V at 1A.
The dimensions of the SLP1006P2 package are 1.0 x 0.6 x 0.5mm.
