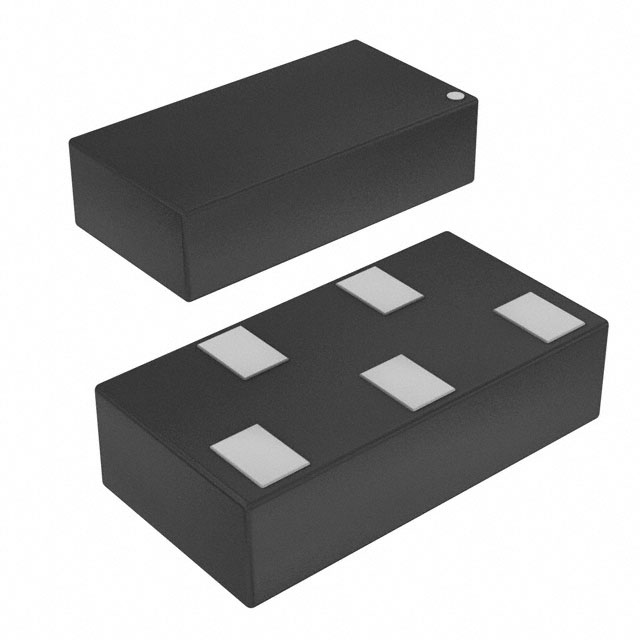

The Semtech RCLAMP0564P.TNT is a 4-channel steering (rail-to-rail) TVS diode designed for ESD protection in high-speed data interfaces. It features a clamping voltage of 4V and a peak pulse current rating of 3A under 8/20µs waveform. With an ultra-low capacitance of 0.17pF at 1MHz, it minimizes signal degradation on high-speed lines.
The device integrates four unidirectional channels in a single package, providing efficient protection for multiple data lines. It is specifically intended for HDMI applications and other differential signal interfaces requiring low capacitance and fast response. The TVS diode supports power line protection and operates over a temperature range of -40°C to 85°C.
The RCLAMP0564P.TNT is offered in a compact 5-UFDFN surface-mount package with supplier device package SGP2010N5. This package is suitable for space-constrained designs in portable electronics and consumer devices. The component is RoHS3 compliant, MSL 1, and REACH unaffected, though these compliance statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.36 | $1.36 |
| 10+ | $1.06 | $1.06 |
| 100+ | $0.76 | $0.76 |
| 500+ | $0.61 | $0.61 |
| 1,000+ | $0.52 | $0.52 |
| 2,500+ | $0.50 | $0.50 |
| 5,000+ | $0.49 | $0.49 |
| 10,000+ | $0.44 | $0.44 |
| 20,000+ | $0.43 | $0.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 V.
3 A at 8/20 µs.
4 channels.
0.17 pF at 1 MHz.
-40°C to 85°C.
5-UFDFN (SGP2010N5).
Steering (rail to rail).
